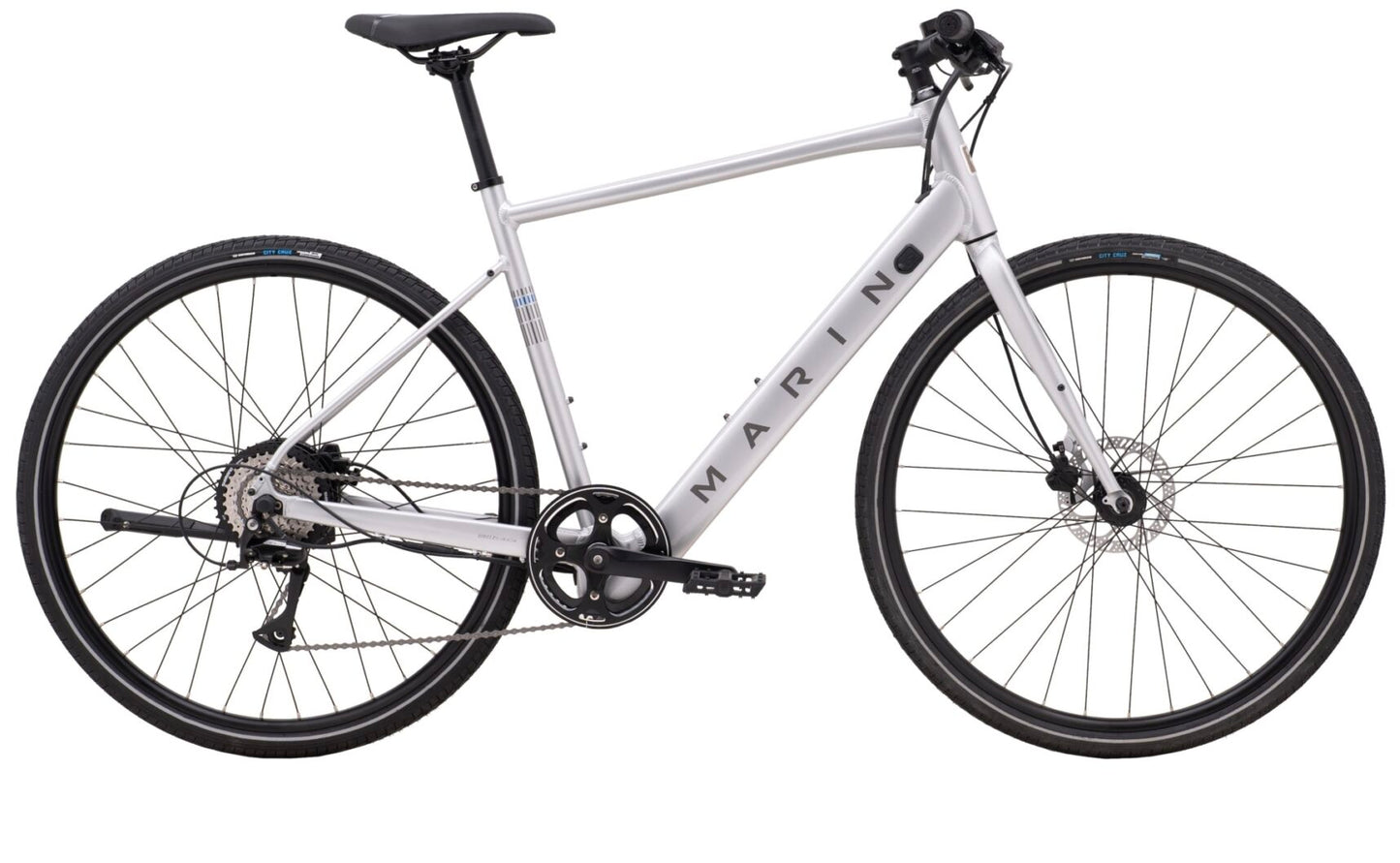

MARIN FAIRFAX E 2024

SPECIFICATIONS

• FRAME

  Series 2 Fitness, E-Bike Specific, 6061 Aluminum, 700c Wheels, Disc Specific, Fitness Geometry, Kickstand Mount, Fender and Rack Mounts

• FORK

  6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

• RIM

  Marin Aluminum Double Wall, Disc Specific

• HUB REAR

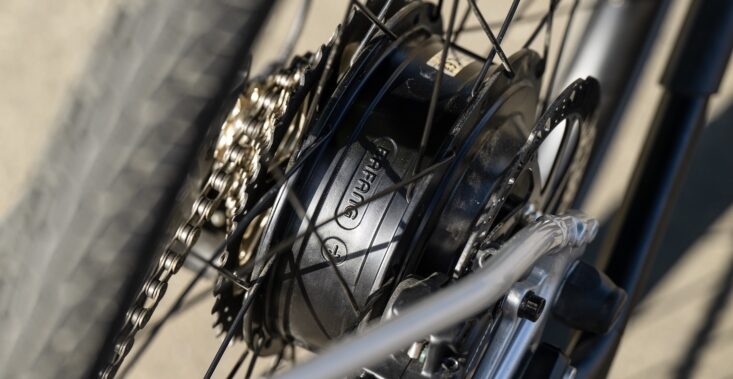

  Bafang 250 Watt Hub Motor, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world

• HUB FRONT

  Forged Aluminum Alloy, 32H

• SPOKES

  14g Stainless Steel

• TIRES

  Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead

• DERAILLEUR REAR

  Shimano Acera, 8-Speed, Wide Range

• DERAILLEUR FRONT

  -

• SHIFT LEVER

  Shimano Altus 8-Speed RapidFire

• CRANKSET

  Alloy Crank, Steel 42T Chainring, Ring Guard

• BOTTOM BRACKET

  Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

• CHAIN

  KMC X8

• CASSETTE

  Shimano HG-400, 8-Speed, 11-40T

• BRAKES FRONT

  Tektro HDM-275 Hydraulic Disc, 160mm Rotor

• BRAKES REAR

  Tektro HDM-275 Hydraulic Disc, 160mm Rotor

• BRAKE LEVERS

  Tektro Hydraulic

• HANDLEBAR

  Marin Alloy Flat

• STEM

  Marin Alloy

• GRIPS

  Marin County

• HEADSET

  FSA, Orbit CE No.8B

• SEATPOST

  Marin Alloy, 27.2mm

• SADDLE

  Marin Fitness

• PEDALS

  Marin Oso OEM Nylon Platform

• BATTERY

  Bafang 360Wh, 36V, In-tube

• CONTROLLER

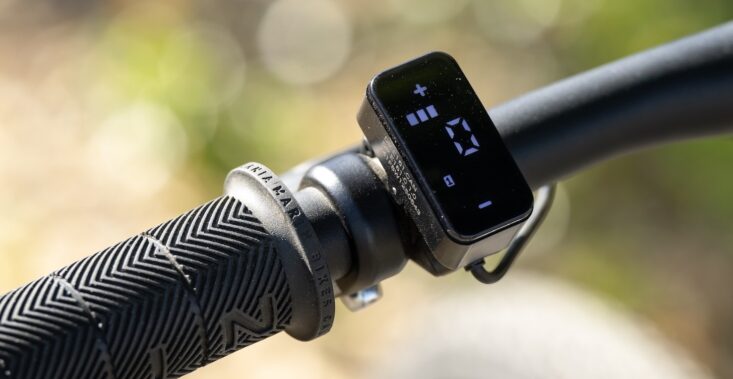

  Bafang Handlebar Mount LED Switch & Display

• KICKSTAND

  Alloy Rear-Mount

Specifications, pricing, and availability are subject to change without notice.
