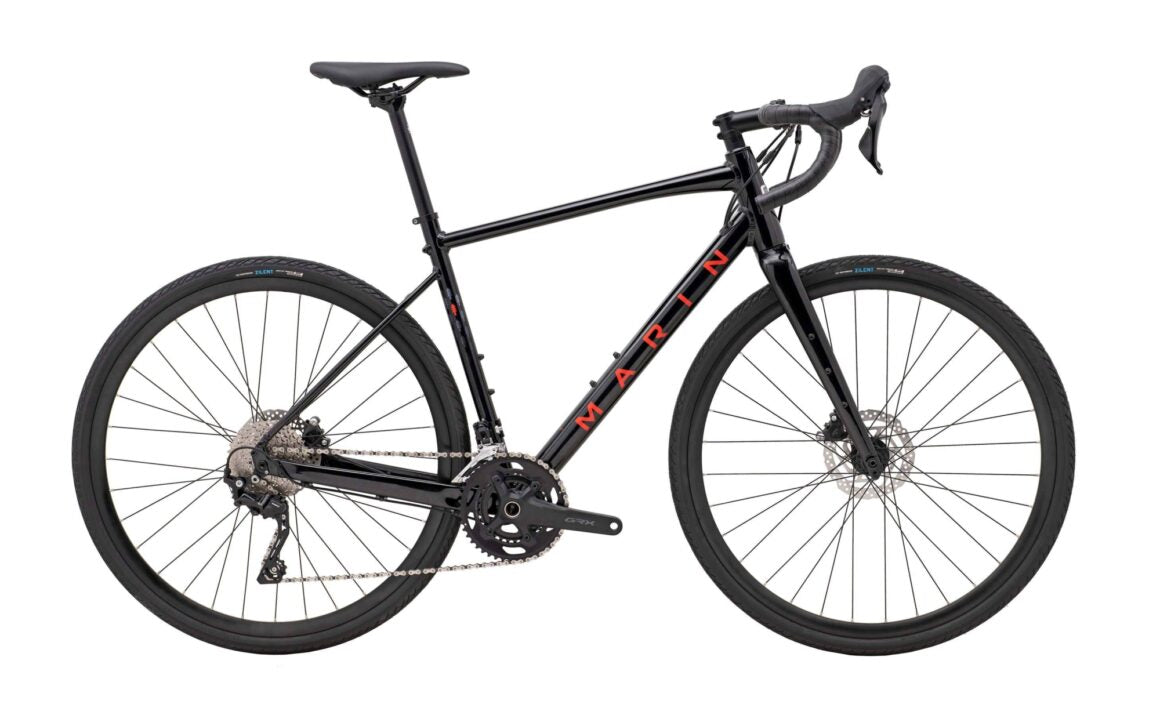

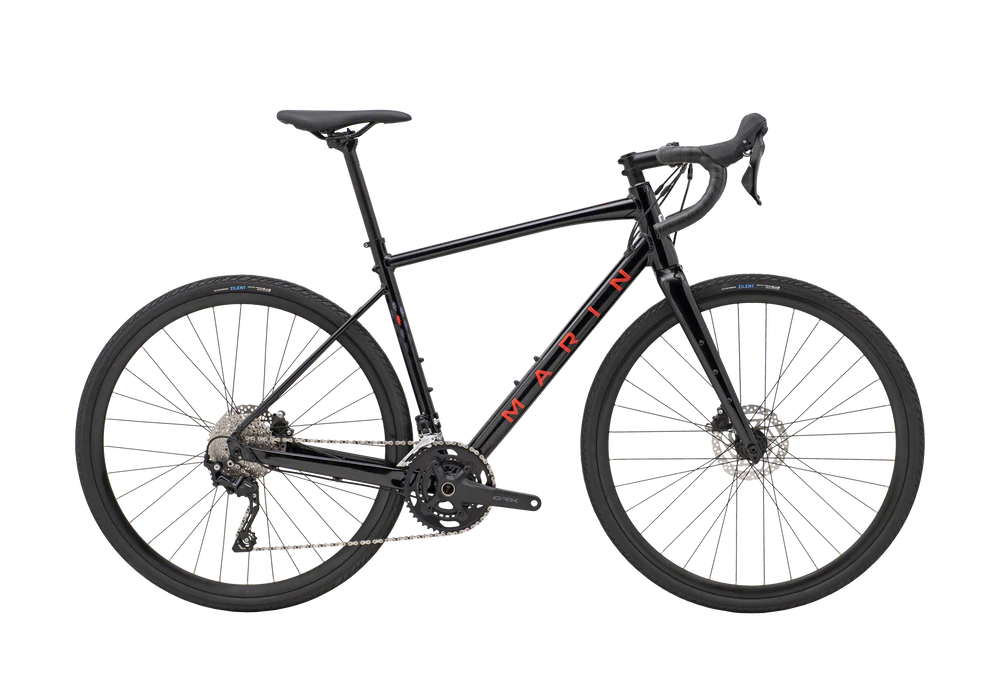

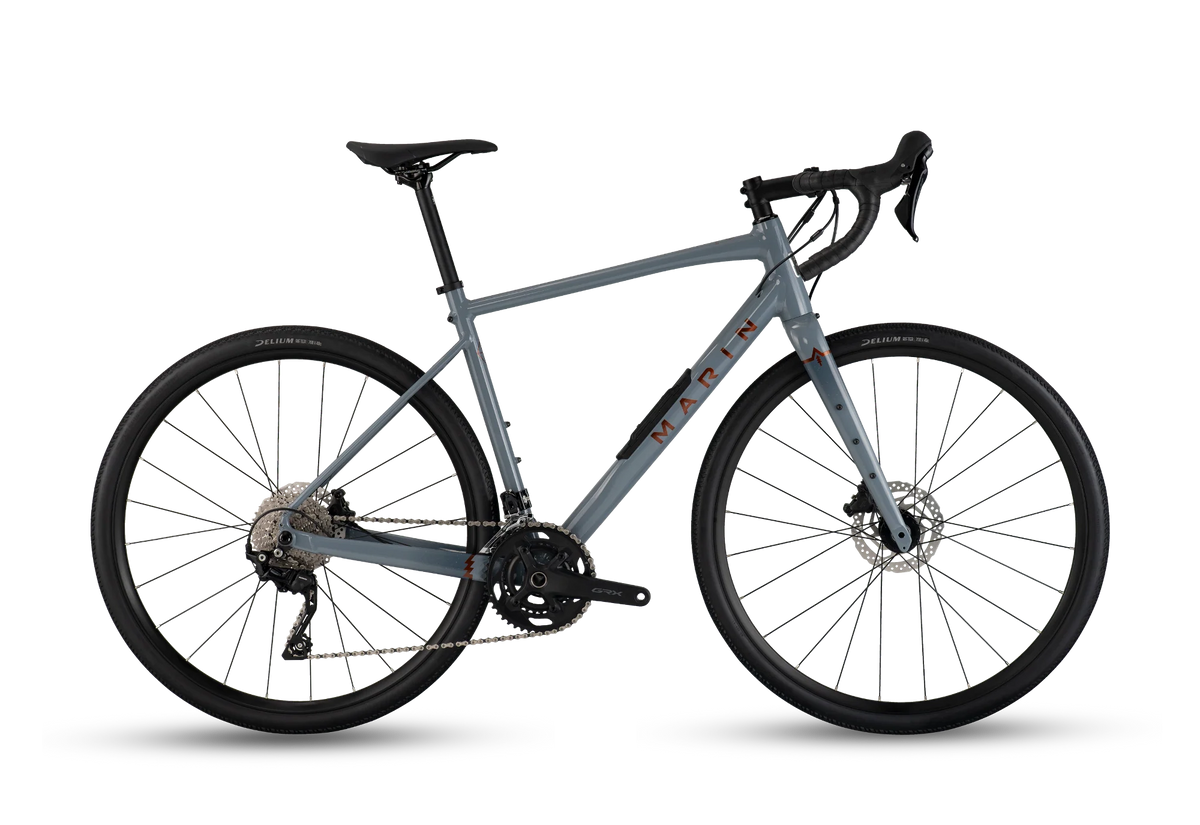

MARIN GESTALT 2

SPECIFICATIONS

• FRAME

  Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

• FORK

  Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

• RIMS

  Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible

• HUB, REAR

  Forged Aluminum Alloy, Disc, 32H

• HUB, FRONT

  Forged Aluminum Alloy, Disc, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co., Zilent, 700x35

• DERAILLEUR, REAR

  Shimano GRX, RX400, 10-Speed

• DERAILLEUR, FRONT

  Shimano GRX RX400

• SHIFT LEVER

  Shimano GRX, RX400, 2x10-Speed

• CRANKSET

  Shimano GRX, FC-RX600, 46/30T

• BOTTOM BRACKET

  Shimano

• CHAIN

  KMC X10

• CASSETTE

  Shimano, HG-5010, 11-36T

• BRAKE, FRONT

  Shimano BR-RX400 Hydraulic Disc, 160mm Rotor

• BRAKE, REAR

  Shimano BR-RX400 Hydraulic Disc, 160mm Rotor

• BRAKE LEVERS

  Shimano w/ Integrated Shifters

• HANDLEBAR

  Marin Butted Alloy, Compact 12º Flared Drop

• STEM

  Marin 3D Forged Alloy

• GRIPS

  Marin Perforated Tape

• HEADSET

  FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

• SEATPOST

  Marin Alloy, 27.2mm

• SADDLE

  Marin Beyond Road Concept

• PEDALS

  Marin Oso OEM Nylon Platform

• EXTRAS

  Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.
