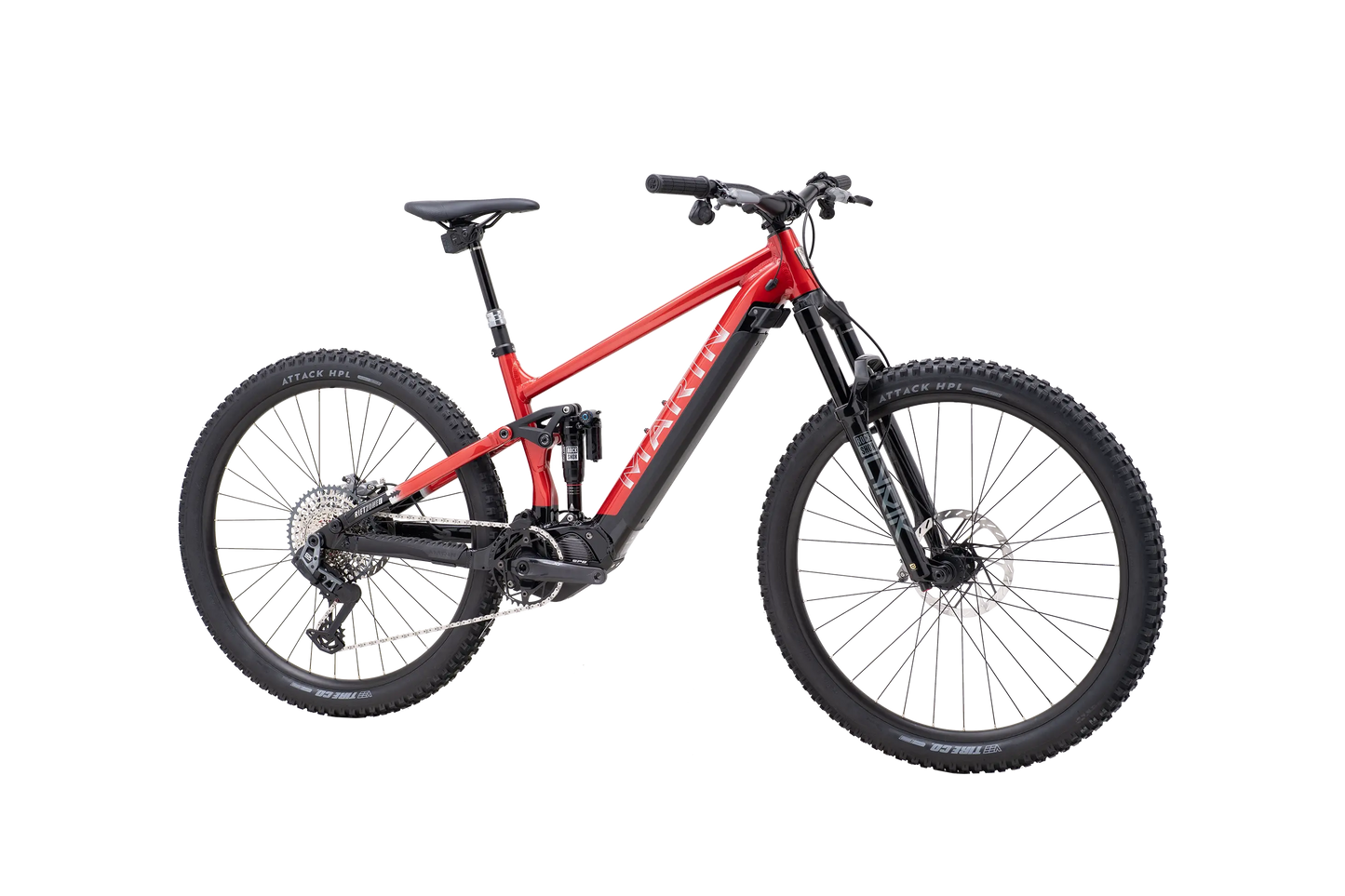

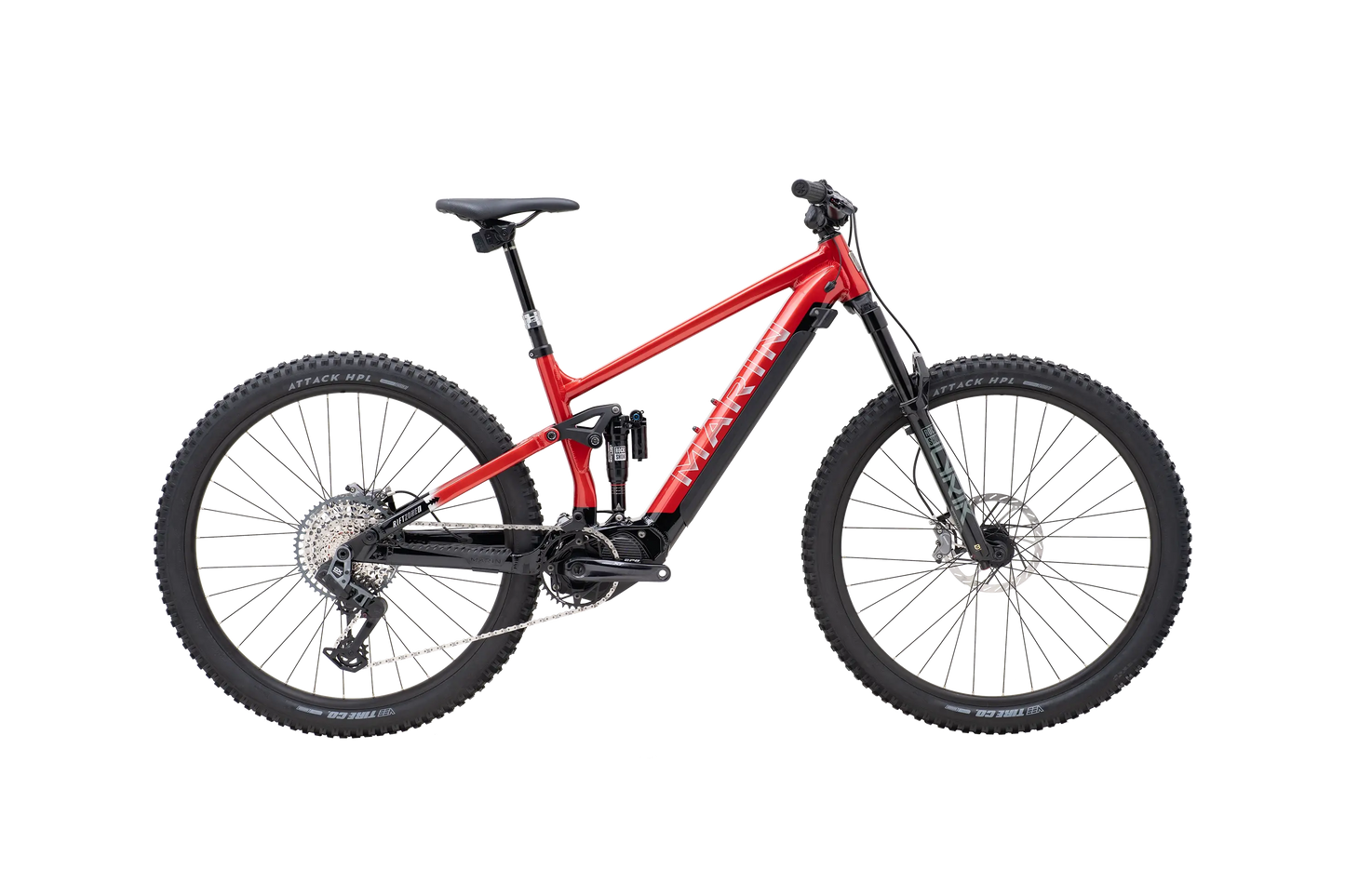

MARIN RIFT ZONE E XR 2024

SPECIFICATIONS

• FRAME

  Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

• FORK

  RockShox Lyrik Ultimate, 150mm Travel, 29", 110x15 Maxle Stealth, 42mm Offset

• SHOCK

  RockShox Super Deluxe Ultimate, 210x55, 25mm x M8 Hardware, Custom Tune

• RIMS

  Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Formula DC-711, 110x15, 6-Bolt, 32H

• HUB FRONT

  Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H

• SPOKES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing

• DERAILLEUR REAR

  SRAM GX AXS

• SHIFT LEVER

  SRAM AXS POD

• CRANKSET

  Shimano XT M8150, 160mm Length, 38T Steel SRAM Chainring

• MOTOR

  Shimano EP801, 250W, 85Nm

• CHAIN

  SRAM GX

• CASSETTE

  SRAM CS-XS-1275, 10-52T

• BRAKES FRONT

  SRAM Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor

• BRAKES REAR

  SRAM Code Bronze, 4-Piston Hydraulic Disc, 180mm HS2 Rotor w/ Bolt on Speed Sensor

• BRAKE LEVERS

  SRAM Code Bronze Stealth

• HANDLEBAR

  Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

• STEM

  Marin CNC, 35mm Length, 35mm Bar Bore

• GRIPS

  Marin Grizzly Lock On

• HEADSET

  FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm

• SADDLE

  Marin eMTB

• PEDALS

  Marin MTB Plastic

• BATTERY

  BT-8036, Internal 630Wh

• DISPLAY

  Shimano SC-E600

• SWITCH

  SW-EN600L Left Hand Switch for Assist Mode Change

• EXTRAS

  Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, CushCore Tire Inserts and Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap

Specifications, pricing, and availability are subject to change without notice.
