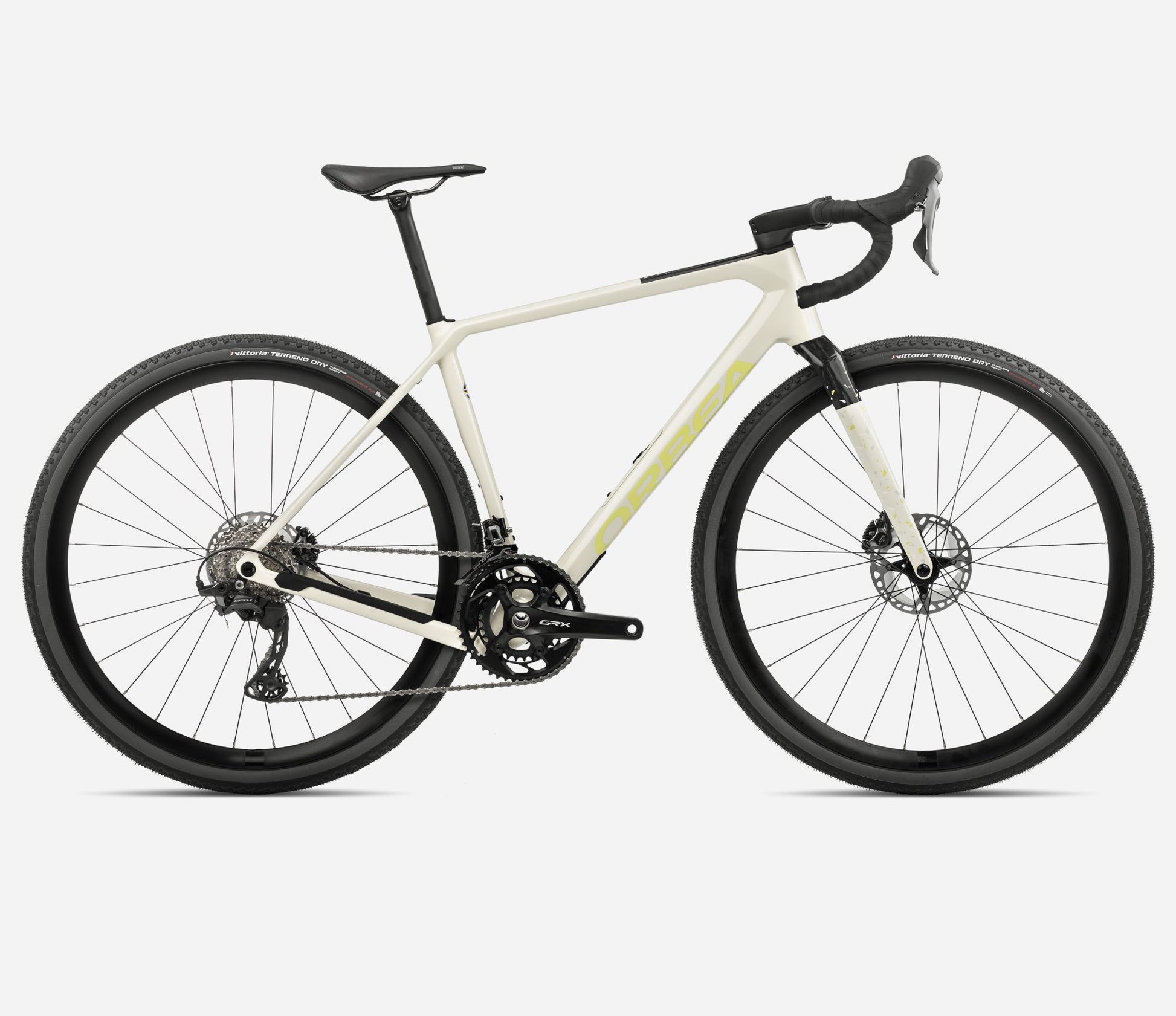

ORBEA TERRA M20TEAM 2024

SPECIFICATIONS

FRAME
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box

FORK
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

HEADSET
FSA 1-1/2" Integrated Aluminium Cup

CRANKSET
Shimano GRX RX820 31x48t

SHIFTERS
Shimano GRX RX820

CASSETTE
Shimano 105 R7100 11-34t 12-Speed

REAR DERAILLEUR
Shimano GRX RX820

FRONT DERAILLEUR
Shimano GRX RX820

CHAIN
Shimano M7100

HANDLEBAR
OC Gravel GR31, Reach 70, Drop 110

STEM
OC Road Performance RP10, -8º

BRAKES
Shimano RX820 Hydraulic disc

WHEELS
Alloy, Tubeless, 700c, 21c

TYRES
Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c

FRONT WHEEL AXLE
Orbea Thru Axle 12x100mm M12x2 P1 Solid

REAR WHEEL AXLE
Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

SEATPOST
OC Performance XP10 Carbon, 27.2mm, Setback 0

SADDLE
Prologo Akero AGX STN size 155mm

HANDLEBAR TAPE
Orbea Anti-Slippery/Shock Proof

STORAGE
Accesories Containers

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
