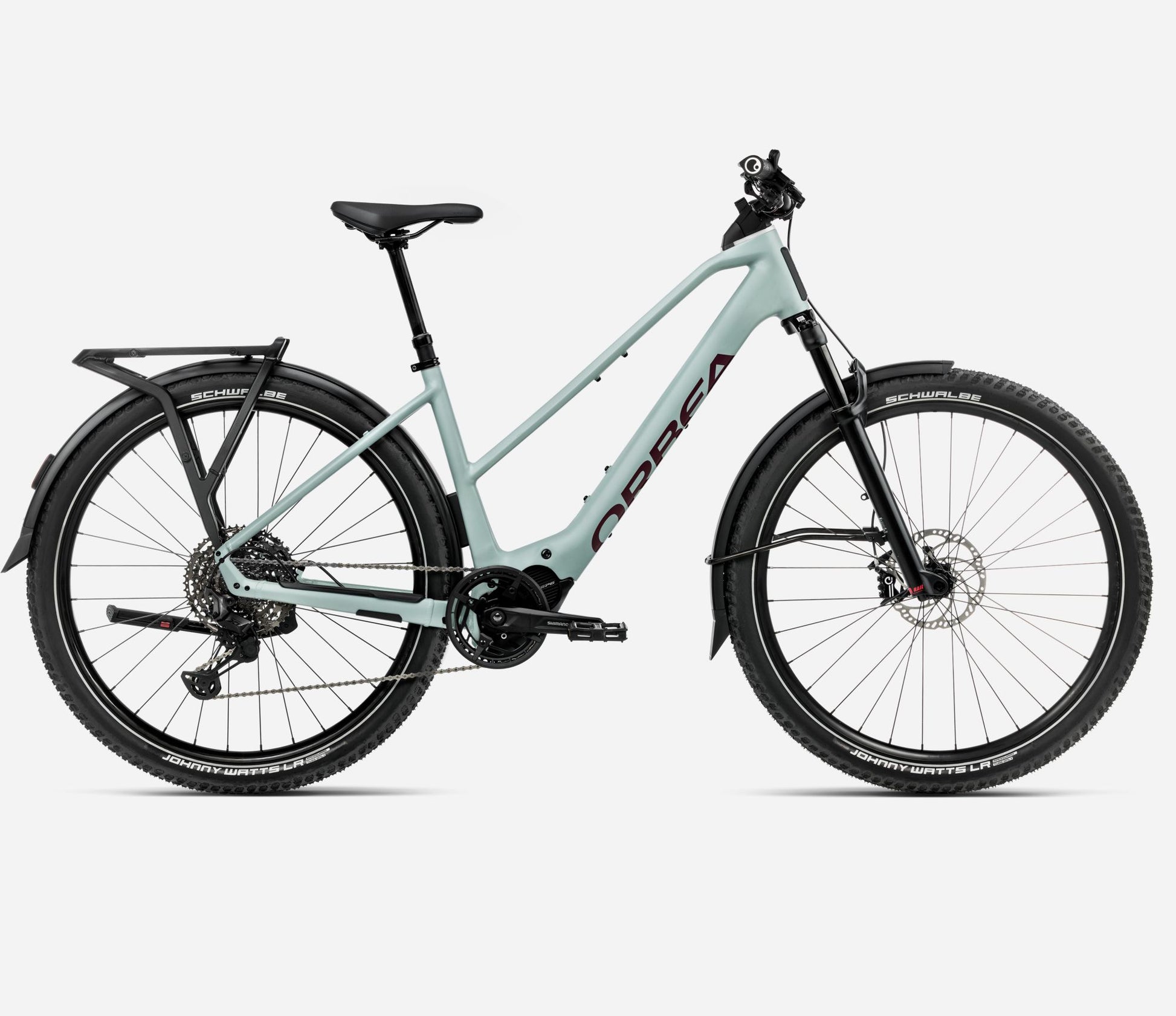

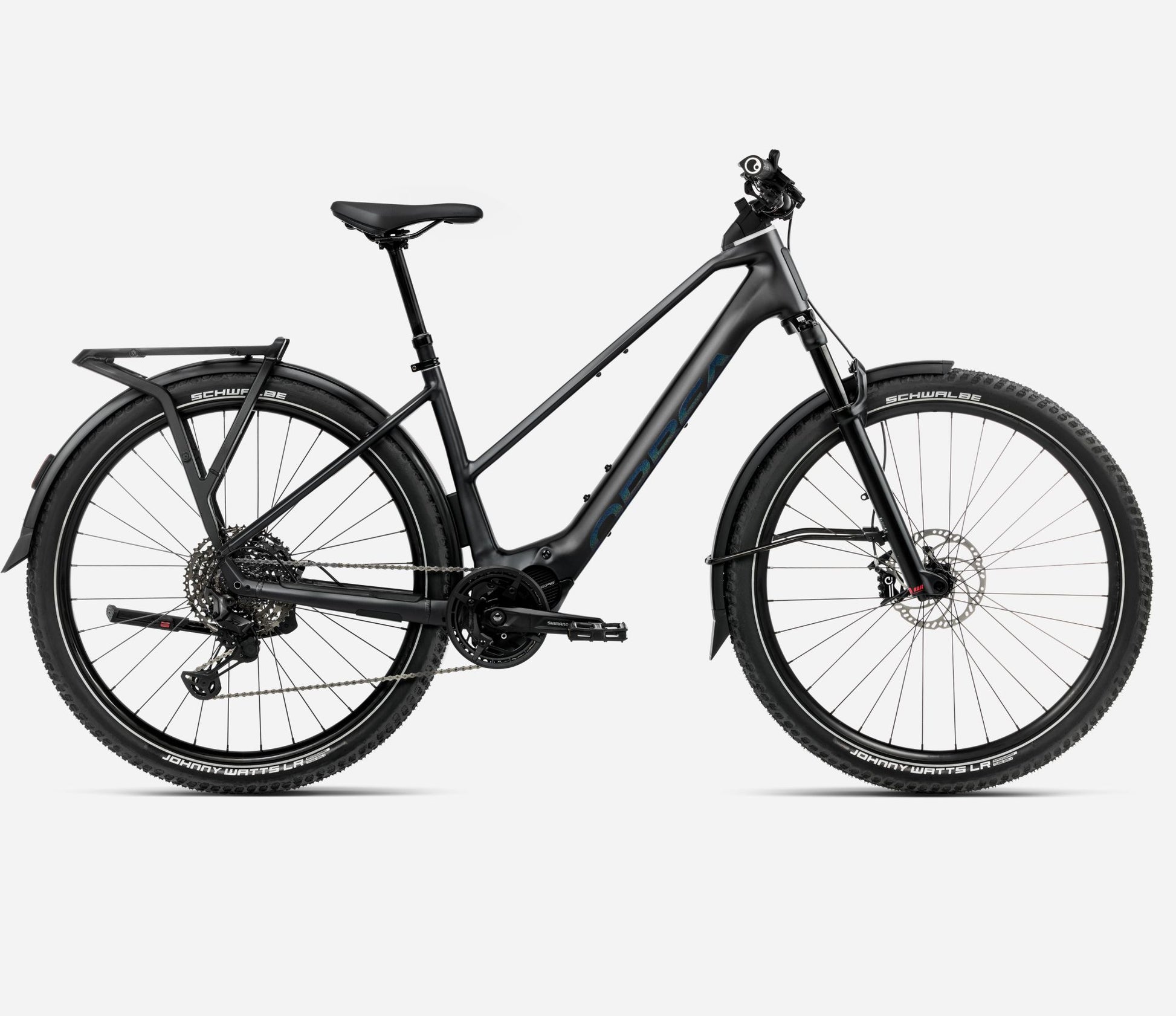

KEMEN ADV 10 MID 2025

Kemen Adv is equally at home cutting through the city or exploring the hills. The powerful Shimano EP motor and 630Wh battery open up a world of possibilities, and our wide range of accessories make it simple to configure Kemen for whatever your day holds.

Frame
Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

Fork
Fox 34 Float AWL 100 RAIL QR15x110

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Battery
Orbea Internal 630Wh

RANGE EXTENDER
N/A

Motor
Shimano EP600

Display
Shimano EN600

CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote
EN600-L

Chainring
Alloy 40t w/chainguard

Crank
Shimano Steps EM600

Shifters
Shimano XT M8130 Link Glide

Cassette
Shimano CS-LG400 11-50t 11-Speed

Rear derailleur
Shimano XT M8130 Link Glide SGS Shadow Plus

Chain
KMC eGlide

Handlebar
Orbea Urban, Integrated Light, Rise 50, Width 760

Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection

Brakes Configuration
N/A

Wheels
Alloy, Tubeless, 29", 29c, 32H

Tyres
Schwalbe Johnny Watts LR, 60-622, Reflective Tape

Pedals
VP-537 Black

Front carrier
N/A

Rear carrier
Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg

Carrier accessories
N/A

Mudguard
Curana Apollo Orbit 70mm

Front Position Light
Orbea integrated, USB-C charging point

Front light
Supernova Starstream Pro, High Beam

Rear light
Supernova TL3 Z

Quick stand
Massload rear adjustable

Seatpost
OC Mountain Control MC22, 31.6mm, Dropper

Seatpost Lever
Shimano SL-MT500

Saddle
Selle Royal Vivo Ergo

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
