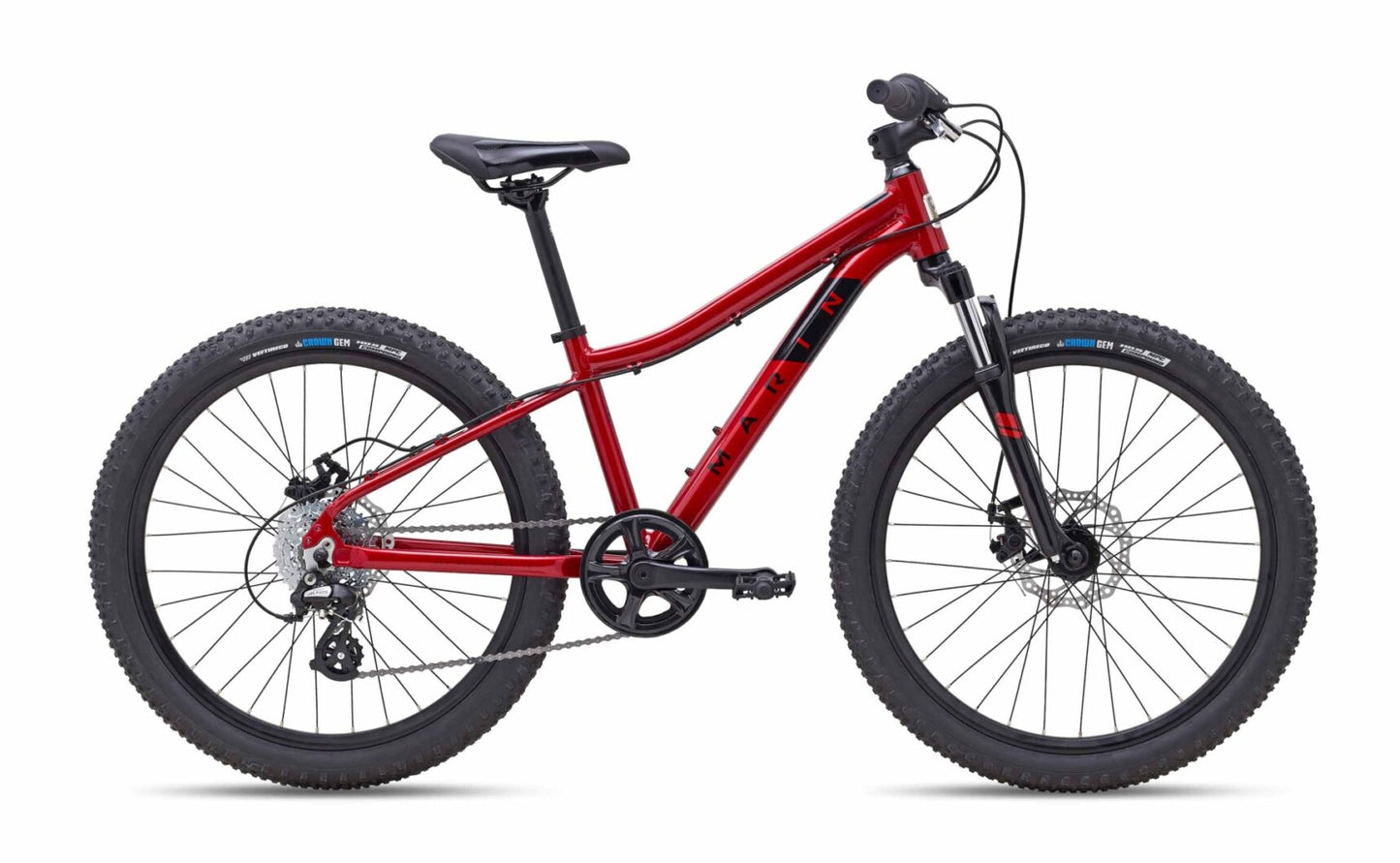

MARIN BAYVIEW TRAIL 24" 2025

FUN!

The Bayview Trail 24” and Hidden Canyon 20” bikes are built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service.

SPECIFICATIONS

• FRAME

  Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts

• FRONT SUSPENSION

  SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel

• RIMS

  Marin, Double Wall Alloy

• HUB, REAR

  Forged Aluminum Alloy, 32H

• HUB, FRONT

  Forged Aluminum Alloy, 32H

• SPOKE, NIPPLES

  14g Stainless Steel

• TIRES

  Vee Tire Crown Gem, 24”x2.25”, Wire Bead

• DERAILLEUR, REAR

  Shimano Altus, 7-Speed

• DERAILLEUR, FRONT

  -

• SHIFT LEVER

  Shimano Revo Twist 1x7-Speed

• CRANKSET

  Forged Alloy, 30T, 152mm, Ring Guard

• BOTTOM BRACKET

  Sealed Cartridge Bearings, Square Taper

• CHAIN

  KMC Z8

• CASSETTE

  Sunrace, 7-Speed, 11-34T

• BRAKE, FRONT

  Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

• BRAKE, REAR

  Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

• BRAKE LEVERS

  Kids Specific Short Reach Alloy Lever

• HANDLEBAR

  Marin Riser, 30mm Rise, 590mm Width

• STEM

  Marin Alloy, 60mm

• GRIPS

  Marin Dual Density

• HEADSET

  FSA, Threaded

• SEATPOST

  Marin Alloy, 27.2mm

• SADDLE

  Marin Kids MTB

• PEDALS

  Kids Specific Nylon Pedal

Specifications, pricing, and availability are subject to change without notice.
