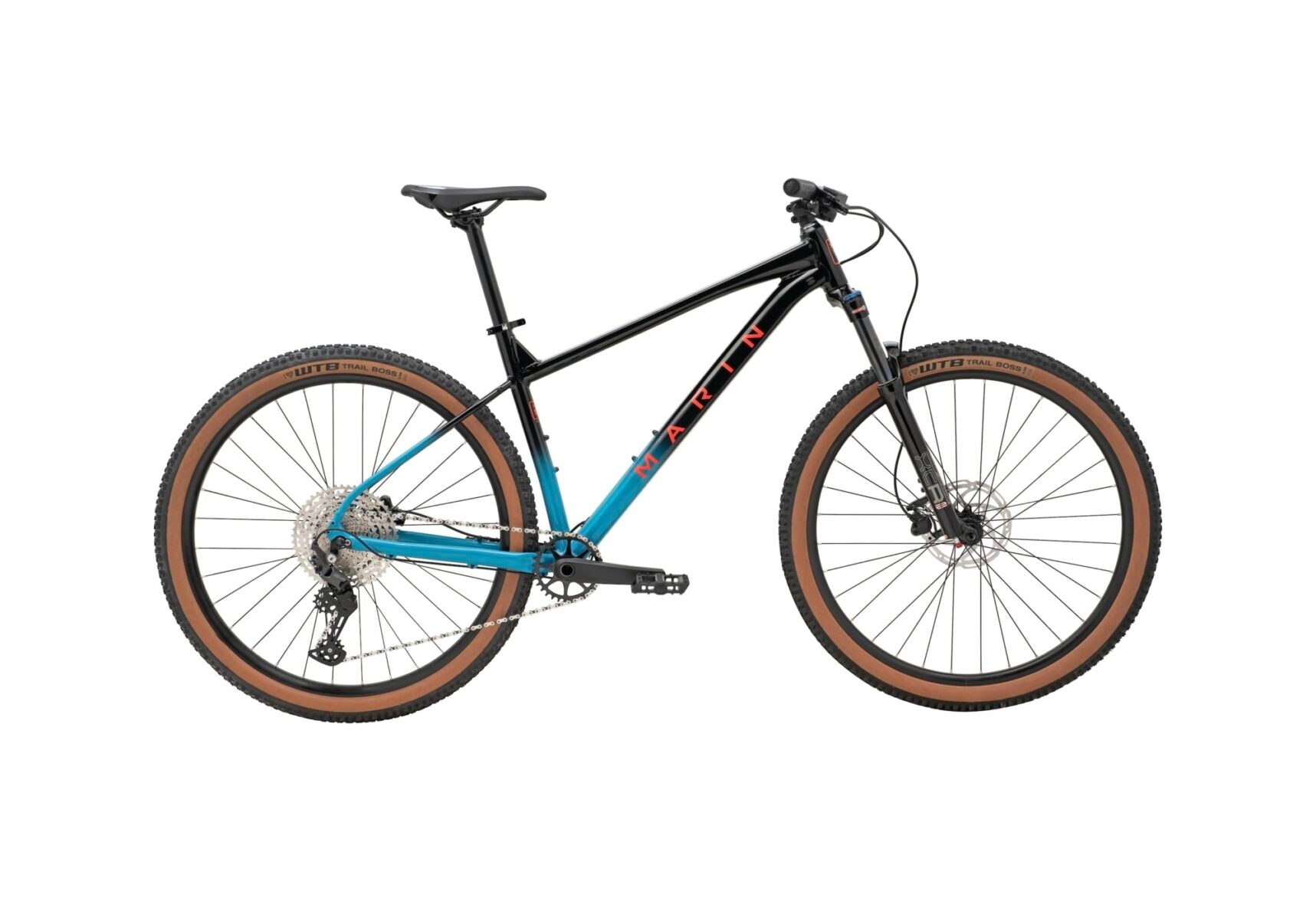

MARIN BOBCAT TRAIL 5 2025

• WHEEL SIZE : 29", 27.5"
• SIZE RANGE: S, M, L, XL
• SUSPENSION: SR/Suntour XCR LOR-DS BOOST
• COLORS: Gloss Black/Dark Blue/Red

• FRAME

  Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

• FRONT SUSPENSION

  SR/Suntour XCR LOR-DS BOOST, Thru-Axle, 120mm Travel, Lockout, 42mm (27.5") and 46mm (29") Offsets

• RIM

  Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Forged Alloy, Disc, 32H

• HUB FRONT

  Forged Alloy, Disc, 32H

• SPOKES

  14g Black Stainless Steel

• TIRES

  WTB Trail Boss Comp, 27.5/29x2.25”, Wire Bead

• DERAILLEUR REAR

  Shimano CUES U6000GS, w/Clutch

• DERAILLEUR FRONT

  -

• SHIFT LEVER

  Shimano CUES 11-Speed

• CRANKSET

  Alloy Crank, Steel Narrow-Wide Chainring, 32T

• BOTTOM BRACKET

  Sealed Cartridge Bearings, Square Taper

• CHAIN

  KMC LG

• CASSETTE

  Shimano CUES CSLG400, 11-Speed, 11-48T

• BRAKES FRONT

  Tektro M280 Hydraulic Disc, 180mm Rotor

• BRAKES REAR

  Tektro M280 Hydraulic Disc, 160mm Rotor

• BRAKE LEVERS

  Tektro M280 Hydraulic

• HANDLEBAR

  Marin 31.8 Riser, 12mm Rise, 780mm Width

• STEM

  Marin Alloy, 31.8mm Clamp, 45mm

• GRIPS

  Marin MTB, Closed End

• HEADSET

  -

• SEATPOST

  Marin Alloy, 30.9

• SADDLE

  Marin MTB

• PEDALS

  Nylon Platform

Specifications, pricing, and availability are subject to change without notice.
