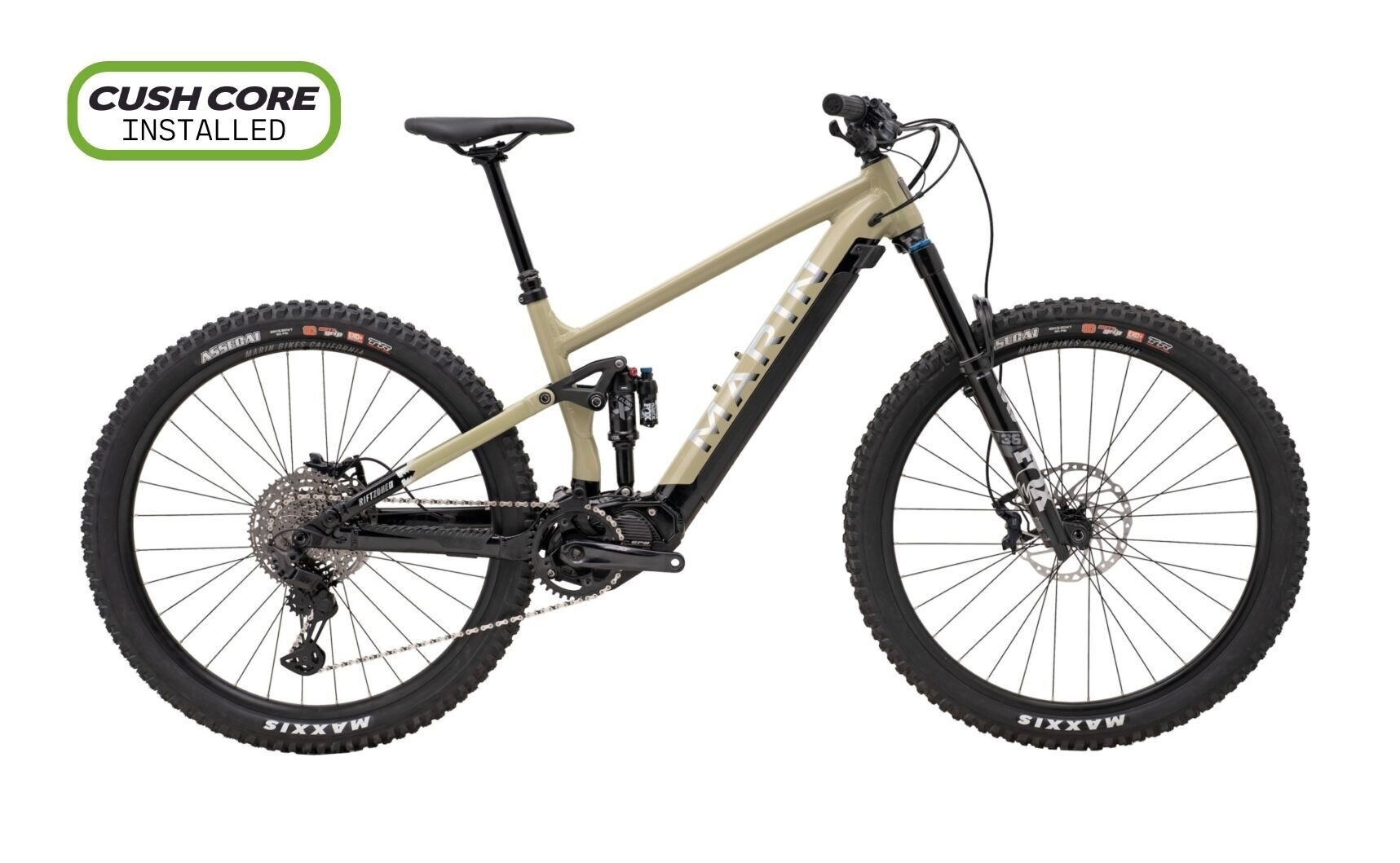

MARIN RIFT ZONE E2 2025

SPECIFICATIONS

• FRAME

  All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

• FORK

  Fox 36 Performance Elite, 140mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

• SHOCK

  Fox Float X, Performance Elite Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom

• RIMS

  Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

• HUB FRONT

  Shimano FH-TC500, 110x15mm, Centerlock , 32H

• SPOKES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing

• DERAILLEUR REAR

  Shimano, Deore XT RD-M8130, 11-Speed, SGS, LinkGlide

• SHIFT LEVER

  Shimano Deore XT SL-M8130-R, LinkGlide, I-Spec EV

• CRANKSET

  Shimano XT M8150, 160mm Length, 38t Chainring

• MOTOR

  Shimano Steps EP801 Drive Unit, 250W, 85Nm

• CHAIN

  KMC E-11S

• CASSETTE

  Shimano XT LinkGlide LG-600, 11-Speed, 10-50T

• BRAKE FRONT

  TRP DH-R EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick

• BRAKE REAR

  TRP DH-R EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick, with Magnet

• BRAKE LEVERS

  TRP DH-R EVO

• HANDLEBAR

  Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

• STEM

  Marin CNC, 35mm Length, 35mm Bar Bore

• GRIPS

  Marin Grizzly Lock On

• HEADSET

  FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

• SADDLE

  Marin eMTB Saddle

• PEDALS

  Marin MTB Plastic

• BATTERY

  Shimano BT-EN806, Internal 630Wh

• DISPLAY

  Shimano SC-E600

• SWITCH

  Shimano SW-EN600L Left Hand Switch for Assist Mode Change

• EXTRAS

  Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, CushCore Tire Inserts and Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap

Specifications, pricing, and availability are subject to change without notice.
