MARIN RIFT ZONE Jr 24 2025

REAL SINGLETRACK RIDING

KEEPING UP WITH THE PARENTS

FUN!

Because young rippers need that Rifty Love too! Our take on the ultimate do-it-all trail bike, bringing big-bike performance for younger riders.

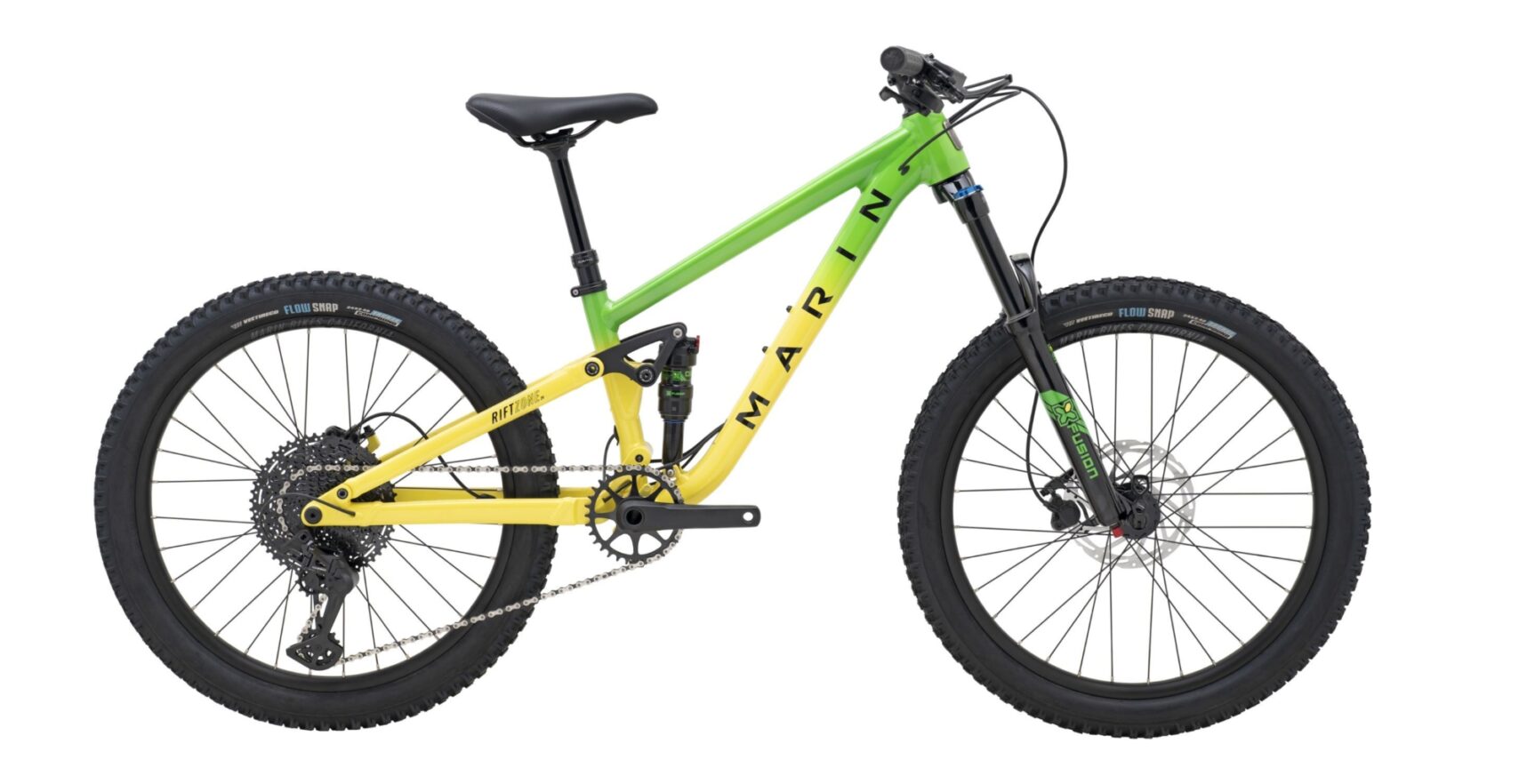

The Marin Rift Zone Jr is made to party, just like the full-sized Rifty. It has 24" wheels that are a little smaller than our full-sized bikes, making it the perfect gateway ride for tweeny riders. And just like the 'grown up' Rift Zone, it has 130mm rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.

And best of all, the Rift Zone Jr can grow with your child. Got another little shredder on the way? The Rift Zone Jr shares the same frame, fork and shock as the Rift Zone 26". Simply swap the wheels to 26" and longer cranks as your child outgrows the Jr.

Specifications

• Frame

  Series 3 6061 Aluminum, 24” Wheels (fits up to 26"), 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

• Front Suspension

  X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle

• Rear Suspension

  X-Fusion O2 Pro R, 190x45mm, Custom Tune, M8x25mm Hardware

• Rims

  Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific

• Hub, Rear

  Forged Alloy, 141mm, Quad Sealed Bearings, Centerlock Disc, 32H

• Hub, Front

  Shimano HB-TC500, 100x15mm, Centerlock, 32H

• Spoke, Nipples

  14g Stainless Steel

• Tires

  Vee Tire Co., Flow Snap 24x2.4", Tackee Compound, Wire Bead

• Derailleur, Rear

  Shimano Deore, 11-Speed, SGS

• Derailleur, Front

  -

• Shift Lever

  Shimano Deore, 11-Speed, SL-5100R

• Crankset

  Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type

• Bottom Bracket

  External Sealed Cartridge Bearings

• Chain

  KMC X-11 Silver and Black

• Cassette

  SunRace, 11-Speed, 11-51T, ED Black

• Brake, Front

  Tektro HD-M280 Hydraulic, 180mm Rotor

• Brake, Rear

  Tektro HD-M280 Hydraulic, 160mm Rotor

• Brake Levers

  Tektro HD-M280

• Handlebar

  Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back

• Stem

  Marin 3D Forged Alloy, 35mm

• Grips

  Marin Dual Density

• Headset

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• Seatpost

  Marin Alloy, 30.9mm

• Saddle

  Marin Speed Concept

Specifications, pricing, and availability are subject to change without notice.
