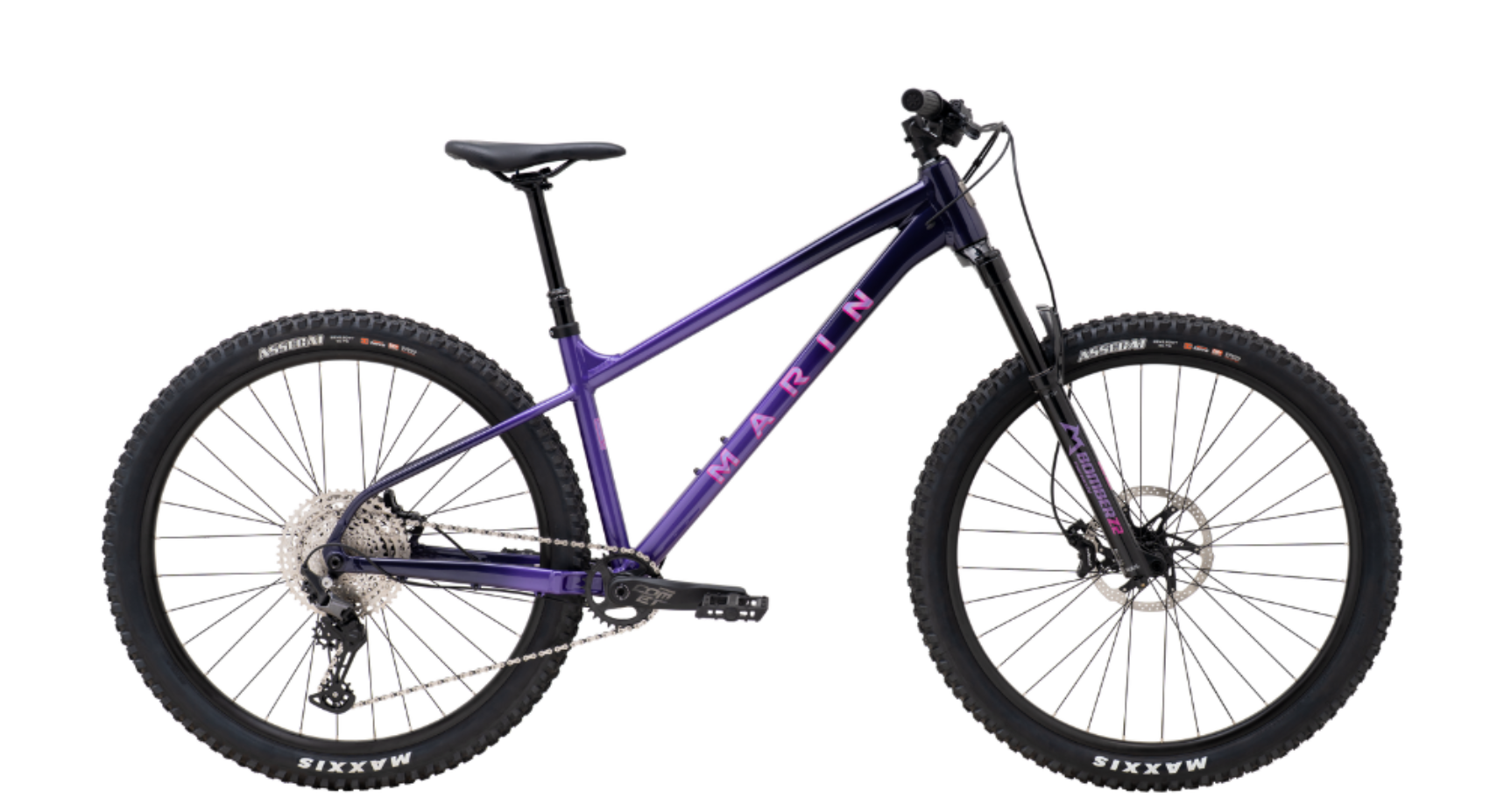

MARIN SAN QUENTIN 3 27.5" 2025

SPECIFICATIONS

• FRAME

  Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

• FRONT SUSPENSION

  Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle

• RIMS

  Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible

• HUB, REAR

  Shimano FH-TC500, 148x12, MicroSpline Freehub Body, Centerlock Disc, 32H

• HUB, FRONT

  Shimano HB-TC500, 110x15mm

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Maxxis Assegai, 27.5x2.5" MAXX TERRA, EXO Casing, Tubeless Compatible

• DERAILLEUR, REAR

  Shimano Deore, 12-Speed, SGS

• DERAILLEUR, FRONT

  -

• SHIFT LEVER

  Shimano Deore, 12-Speed, SL-7100R

• CRANKSET

  FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

• BOTTOM BRACKET

  FSA MegaExo 73mm BSA

• CHAIN

  KMC X-12 Silver and Black

• CASSETTE

  SunRace, 12-Speed, MicroSpline, 10-51T

• BRAKE, FRONT

  TRP Slate EVO 4-Piston Hydraulic, Resin Pads, 203mm Rotor

• BRAKE, REAR

  TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 180mm Rotor

• BRAKE LEVERS

  TRP Slate EVO, I-Spec EV Compatible

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin Grizzly Lock On

• HEADSET

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  TranzX YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm, L 170mm Travel, and Size XL 200mm Travel, 30.9mm

• SADDLE

  Marin Speed Concept

• PEDALS

  Marin Oso OE Flat

• EXTRAS

  -

Specifications, pricing, and availability are subject to change without notice.
