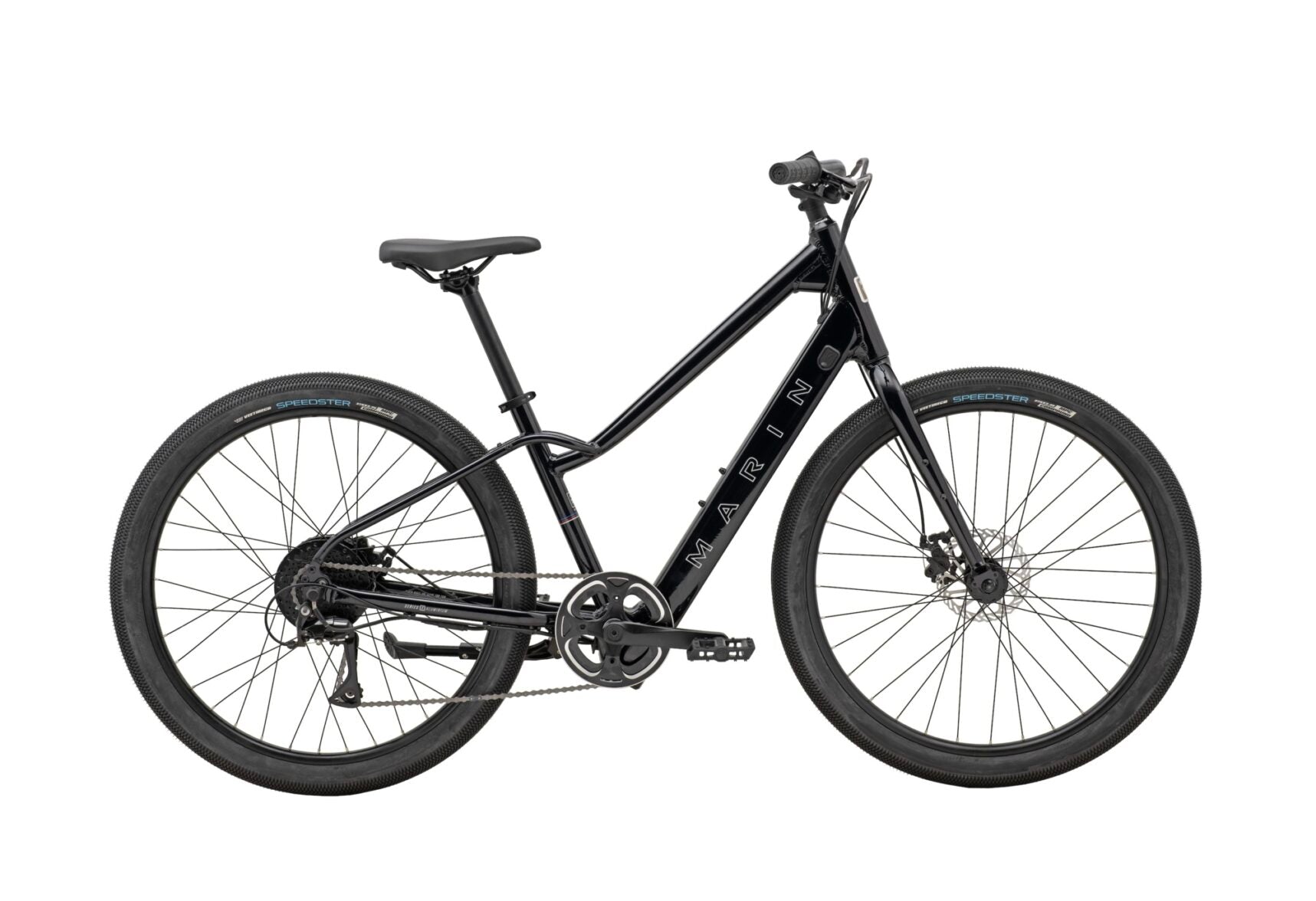

MARIN STINSON E 2025

MARIN STINSON E 2025

£1,599.00
£1,599.00
Sale Enquire to Order
Tax included.
Size

To pay by Klarna, add to cart.

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

Specifications


Frame
Series 1 Comfort, Ebike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

Fork
CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

Rims
Marin Aluminum Double Wall, Disc Specific

Hub, Rear
Bafang 250 Watt Hub Motor, 40Nm, 36H

Hub, Front
Forged Aluminum Alloy, 32H

Spoke, Nipples
14g Stainless Steel

Tires
Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

Derailleur, Rear
Shimano Acera, 8-Speed

Shift Lever
Shimano Altus 8-Speed RapidFire

Crankset
Alloy Crank, Steel 38T Chainring, Ring Guard

Bottom Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

Chain
KMC Z8

Cassette
SunRace 8-Speed, 11-34T

Brake, Front
Tektro MDM280 Mechanical Disc, 160mm Rotor

Brake, Rear
Tektro MDM280 Mechanical Disc, 160mm Rotor

Brake Levers
Alloy, Long Pull

Handlebar
Marin Alloy, 25mm Rise, 18˚ Backsweep

Stem
Marin Alloy

Grips
Marin County

Headset
FSA, TH No.10P

Seatpost
Marin Alloy, 30.9mm

Saddle
Marin Comfort

Pedals
Nylon Platform

Battery
Bafang 340Wh, 36V, In-tube

Controller
Handlebar Mount LCD Switch & Display

Kickstand
Alloy Center Mount

Range, Charging Time
19-62 Miles/25-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours

Specifications, pricing, and availability are subject to change without notice.
