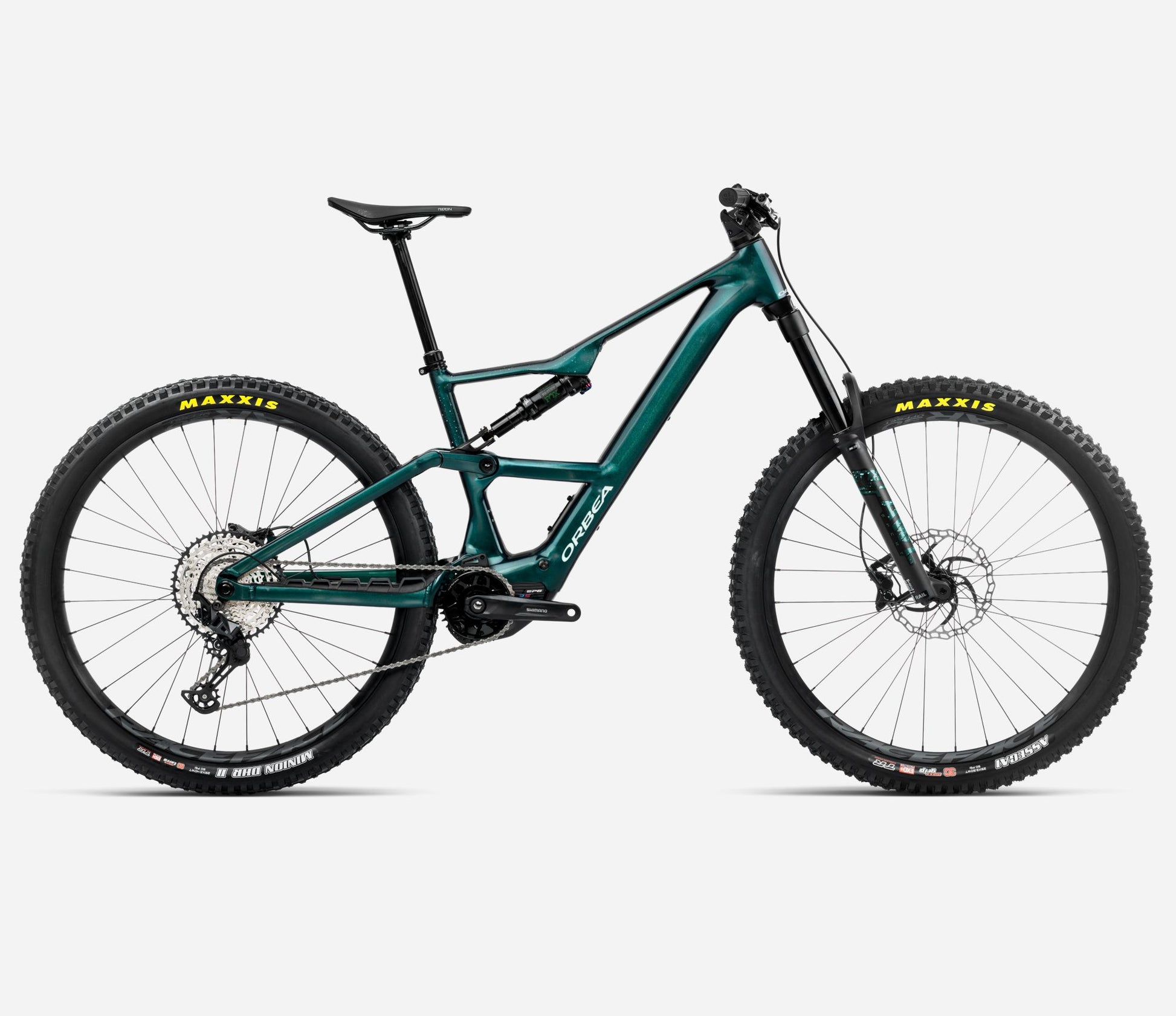

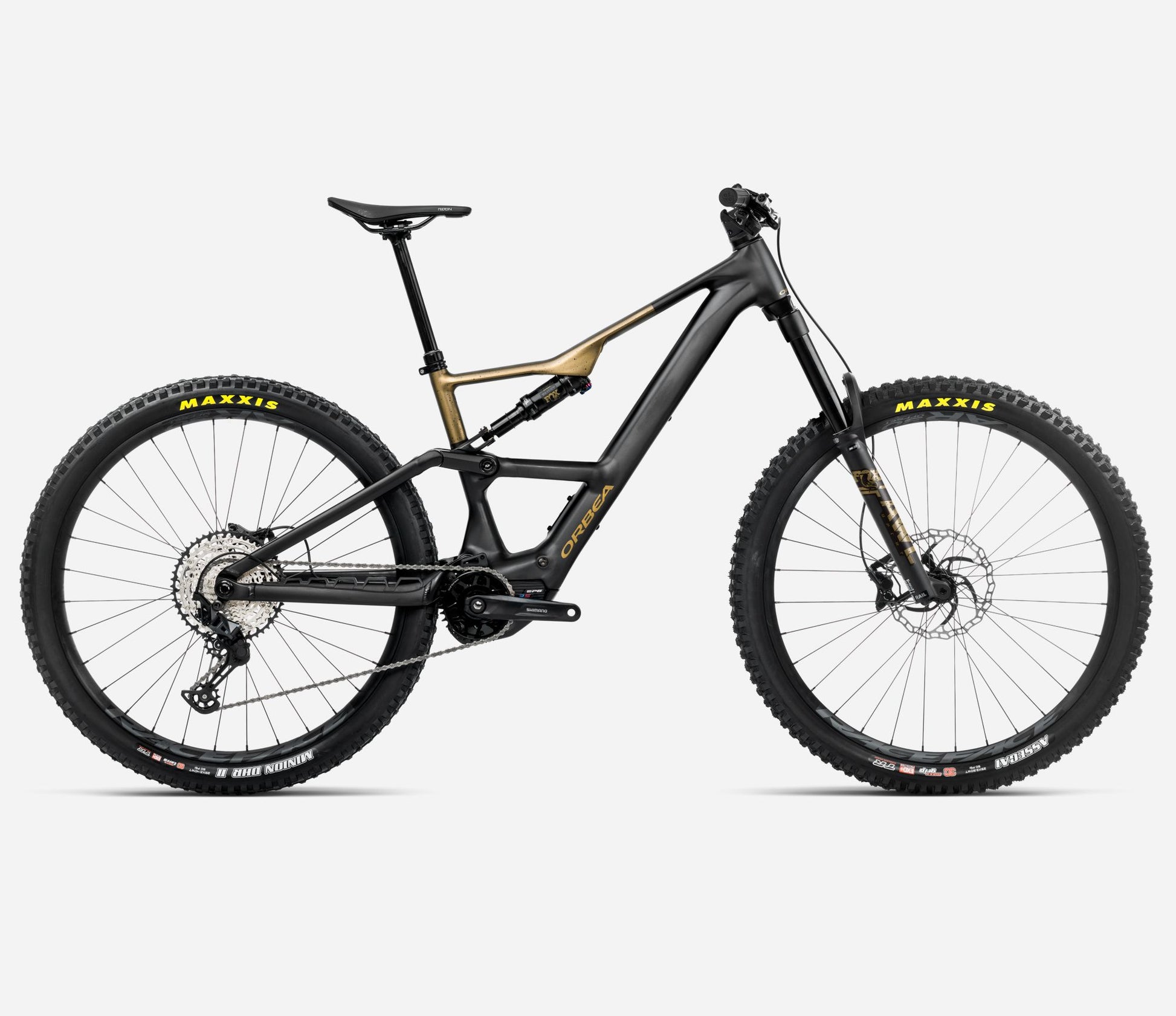

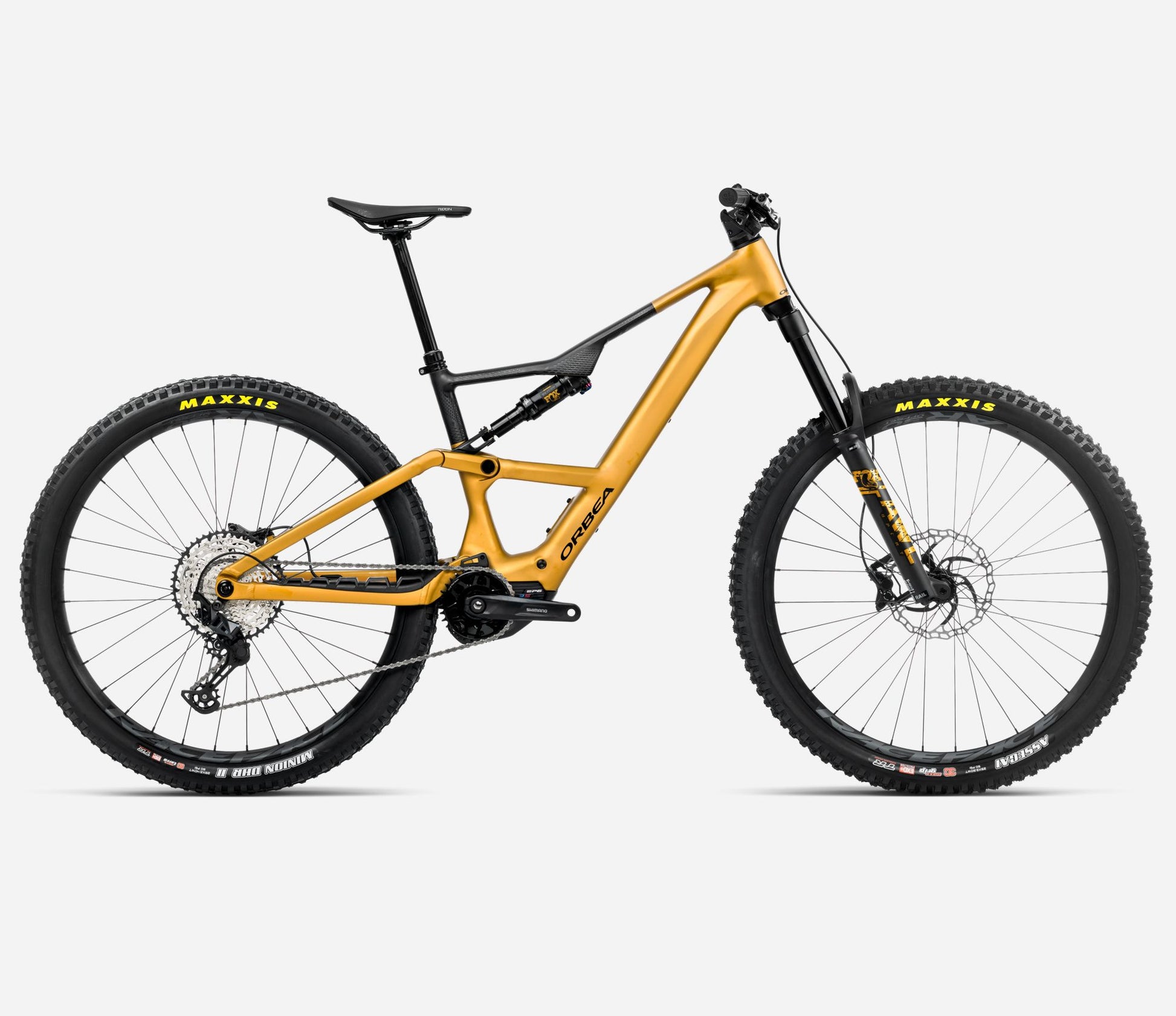

ORBEA RISE LT H20 2025

ORBEA RISE LT H20 2025

£5,099.00
£5,099.00
Sale Enquire to Order
Tax included.
Size
Colour

To pay by Klarna, add to cart.

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

New Alloy version

The Trail Shredder's eMTB. Rise LT offers 160mm / 150mm of plush travel with a progressive trail geometry.

Frame
Orbea Rise LT Hydro 2025, 150mm travel, 29" wheels, Concentric Boost 12x148

Shock
Fox Float Performance 2-Pos Evol LV custom tune 210x55mm

Fork
Fox 36 Float AWL HD Sport 160 Rail QR15x110

Steerer tube
Alloy 1-1/2", Black Oxidated Bearing

Battery
Orbea Internal 630Wh (optional 420Wh)

RANGE EXTENDER
Optional

Motor
Shimano EP600 RS Gen2 MC

Display
N/A

CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote
EN600-L

Chainring
e*thirteen Helix Core e*spec Direct Mount 32T 55mm chain line

Crank
Shimano Steps EM600

Shifters
Shimano Deore M6100 I-Spec EV

Cassette
Shimano CS-M7100 10-51t 12-Speed

Rear derailleur
Shimano SLX M7100 SGS Shadow Plus

Chain
Shimano M6100

Chainguide
Orbea eBike chainguide

Handlebar
OC Mountain Control MC31, Rise20, Width 800

Stem
OC Mountain Control MC20, 0º

Computer Mount
OC Computer Mount CM-05, Garmin/Sigma

Brakes
Shimano MT420 Hydraulic Disc

Rotors
Galfer Wave Rotors 203mm front / 180mm rear

Wheels
Race Face AR 30c Tubeless Ready

Tyres
Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip

Tyres
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR

Seatpost
OC Mountain Control MC22, 31.6mm, Dropper

Seatpost Lever
Shimano SL-MT500 I-Spec EV

Saddle
Fizik Terra Ridon X5 145mm

Grips
OC Lock On



We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
