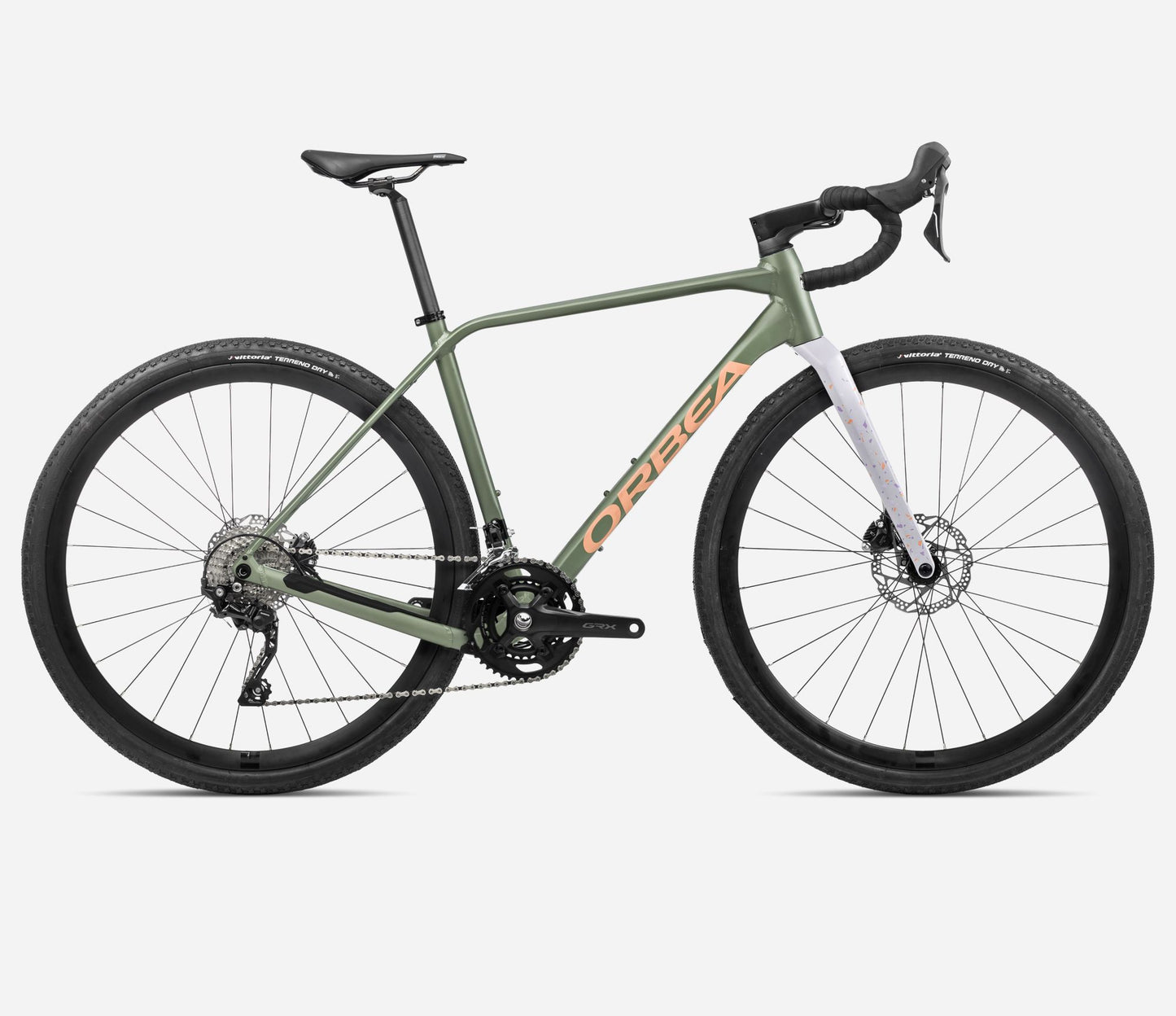

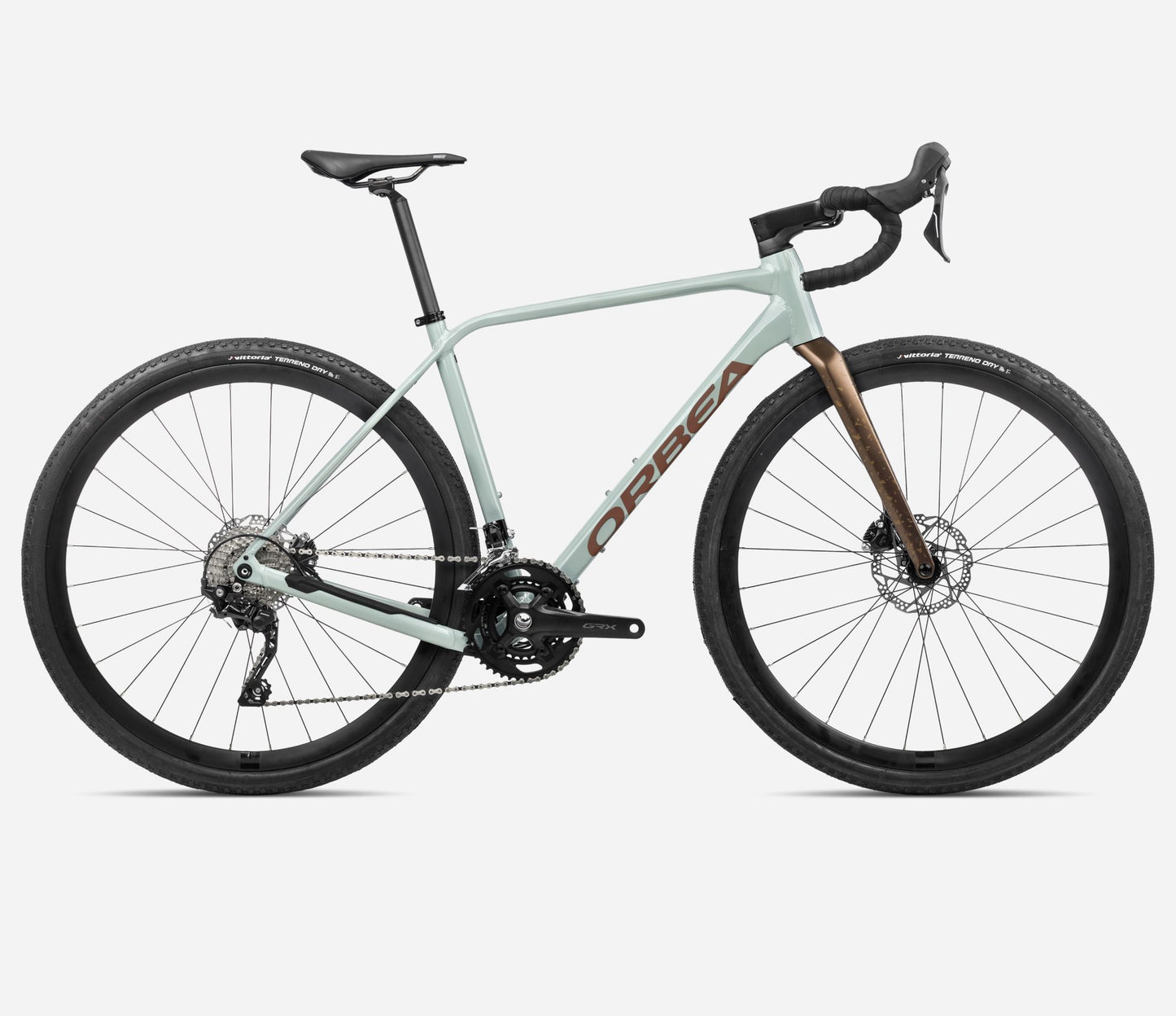

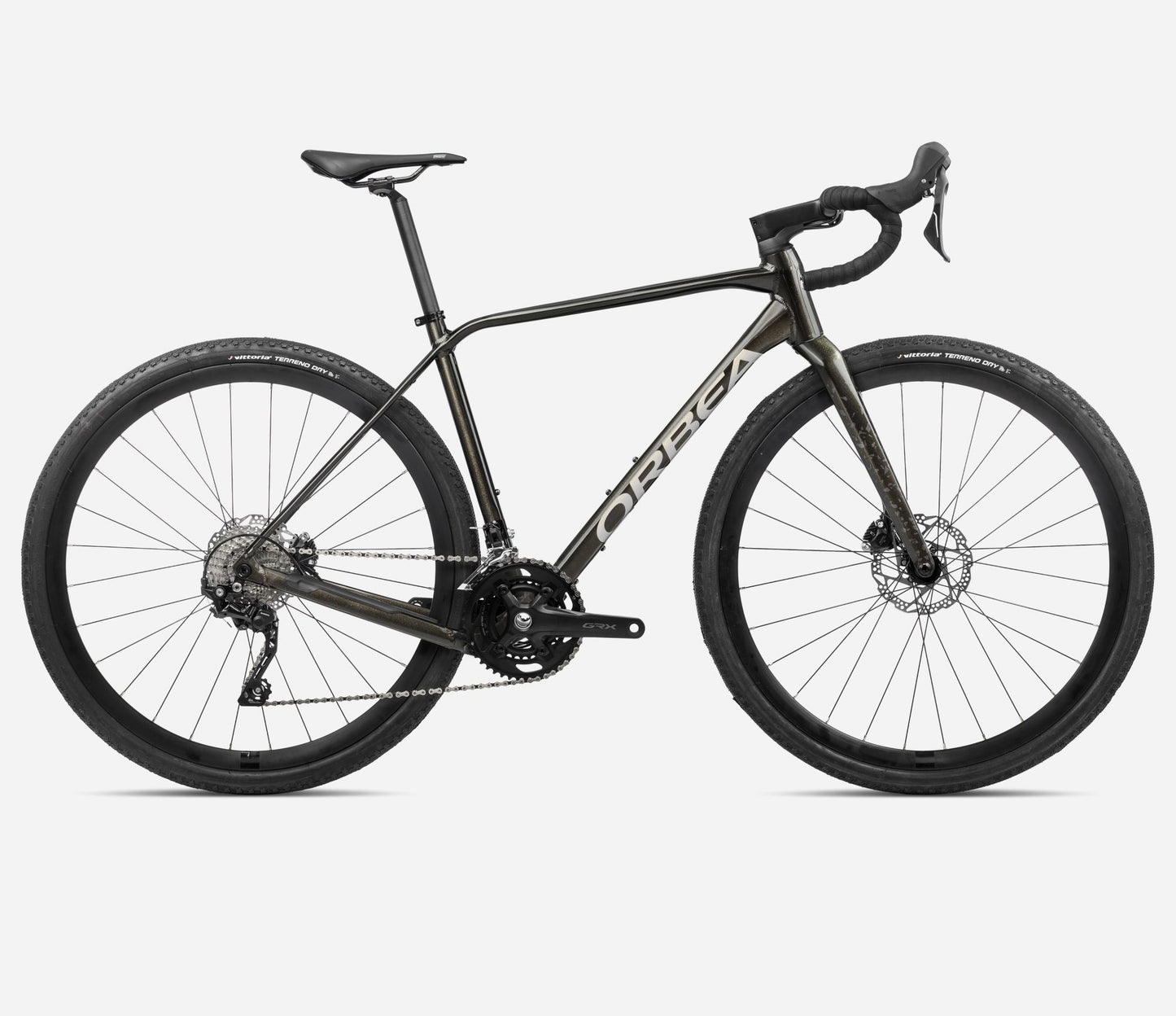

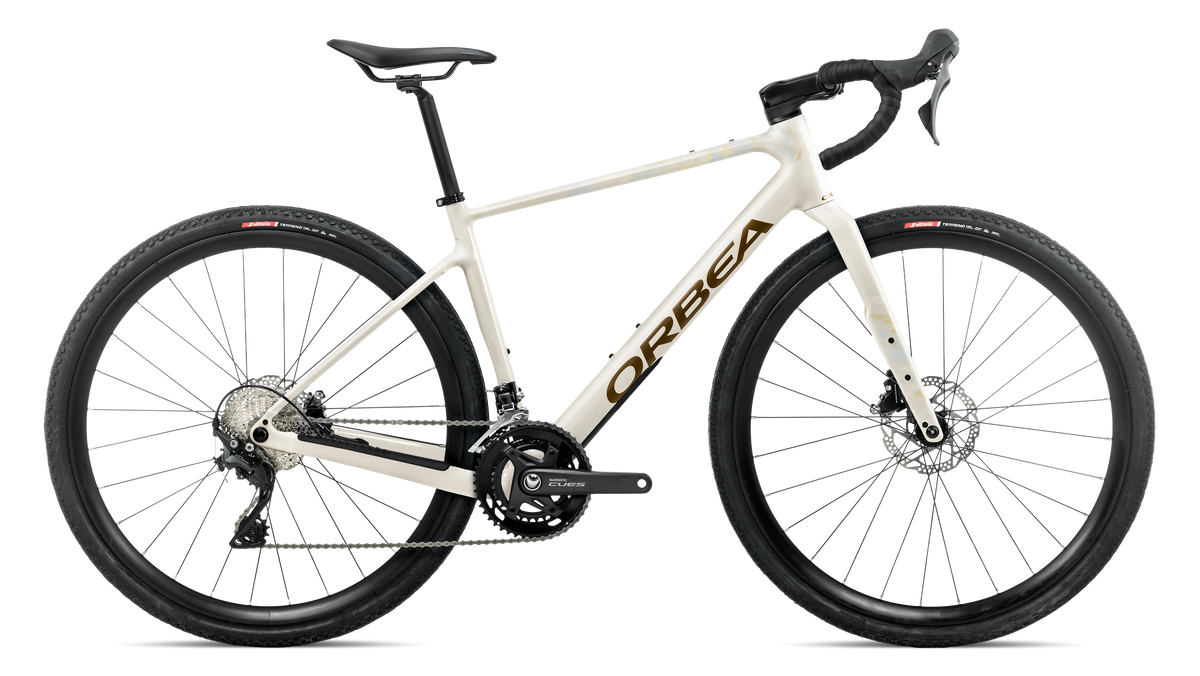

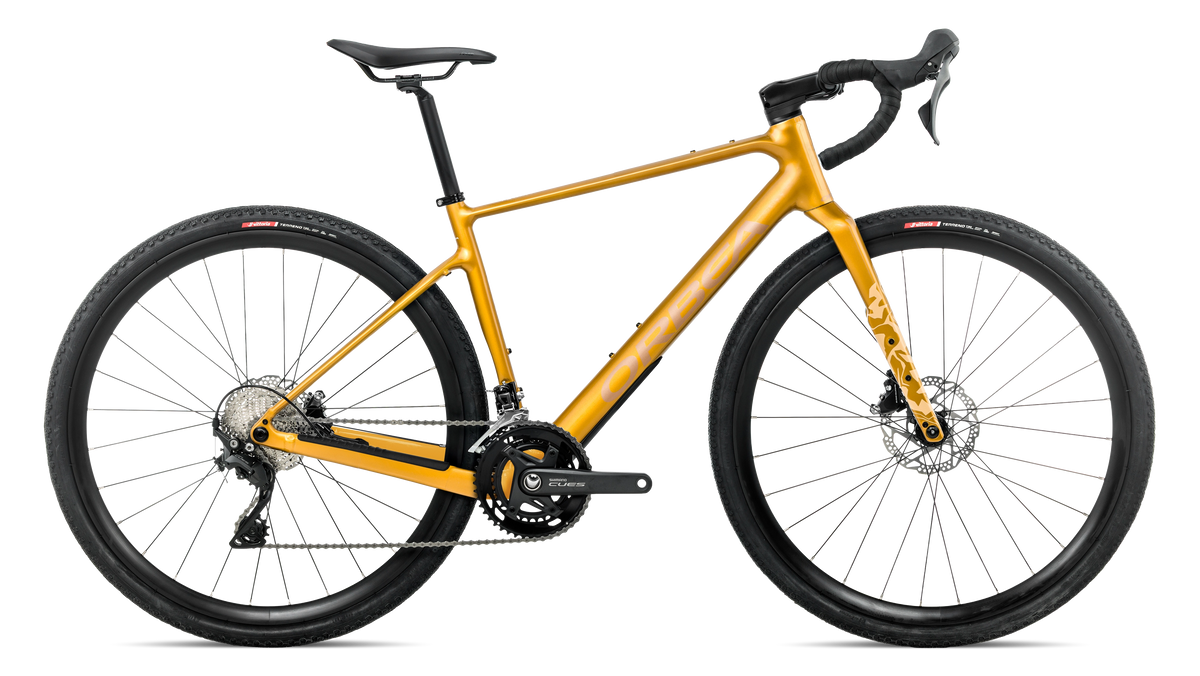

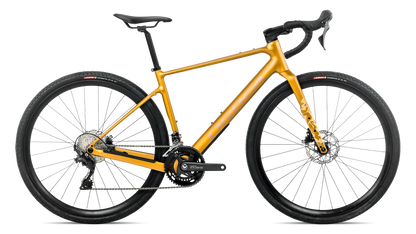

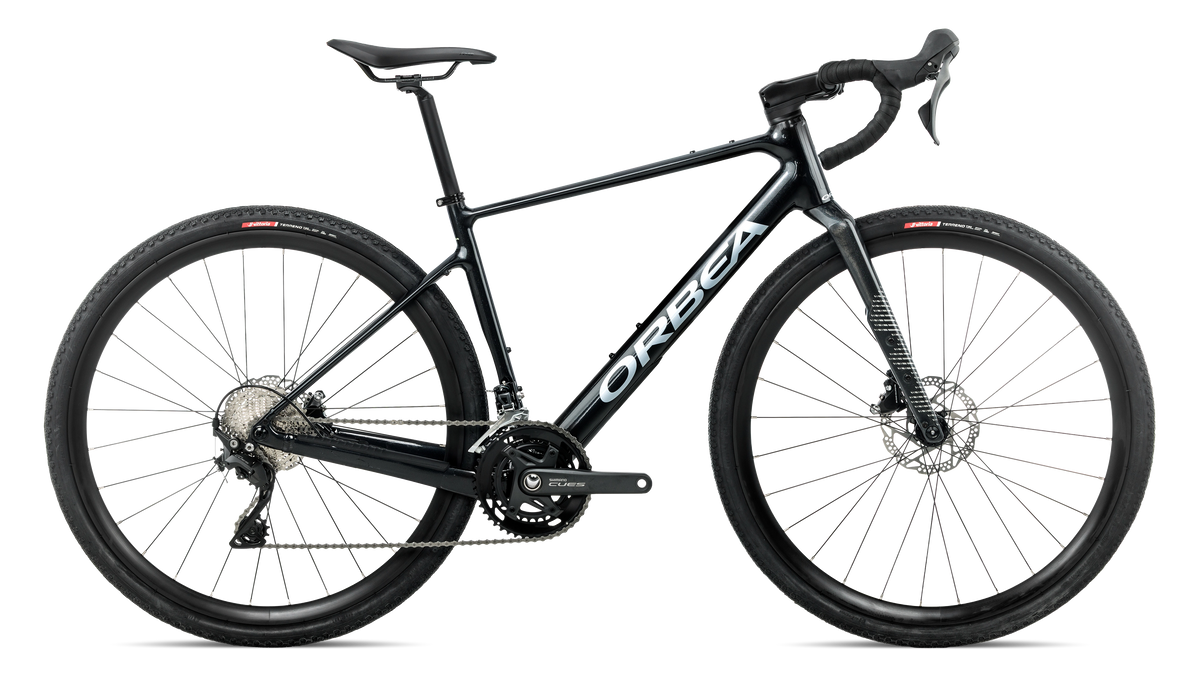

ORBEA TERRA H40 2024

SPECIFICATIONS

FRAME
Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system

FORK
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

HEADSET
FSA 1-1/2" Integrated Aluminium Cup

CRANKSET
Shimano GRX RX600-10 30x46t

SHIFTERS
Shimano ST-RX400

CASSETTE
Shimano Tiagra HG-500 11-34t 10-Speed

REAR DERAILLEUR
Shimano RD-RX400

FRONT DERAILLEUR
Shimano GRX RX400

CHAIN
KMC X10

HANDLEBAR
OC Gravel GR31-R, Rise 15, Reach 70, Drop 110

STEM
OC Road Performance RP21, -6º

BRAKES
Shimano RX400 Hydraulic Disc

WHEELS
Alloy, Tubeless, 700c, 21c

TYRES
Vittoria Terreno Dry Gravel 700x38c

FRONT WHEEL AXLE
Orbea Thru Axle 12x100mm M12x2 P1 Solid

REAR WHEEL AXLE
Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

SEATPOST
SP 0.2 Carbon, 27.2mm, Setback 20

SADDLE
Prologo Akero AGX STN size 155mm

HANDLEBAR TAPE
Orbea Eva
