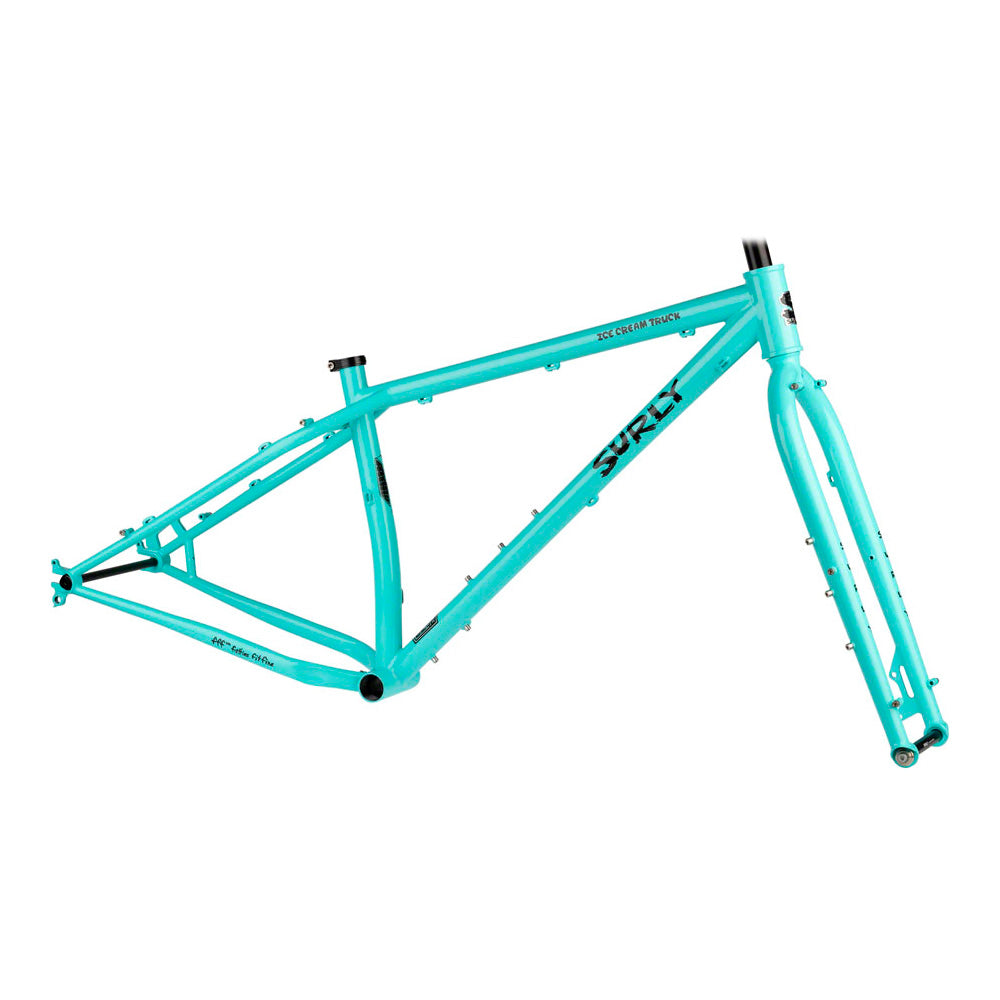

Surly Ice Cream Truck Frameset

Surly Ice Cream Truck Frameset

£1,000.00
£1,000.00
Sale Enquire to Order
Tax included.
Size
Colour

To pay by Klarna, add to cart.

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

The Largest Tyre Clearance on a Fat Bike Frame

From log and root covered ribbons of twisty singletrack to miles of powdery snow or sandy beaches, Ice Cream Truck can handle it all. Hell, you could probably even hop over a grizzly if the situation arises. Probably.



Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Rear Dropout Configuration

Horizontal slotted with optional vertical dumpout

Rear Hub Spacing

12 x 197mm (Surly axle included)

10 x 190mm with Surly 10/12 Adapter Washers (not included)

Front Hub Spacing

15 x 150mm (Surly axle included)

Rear Brake

Disc - 51mm I.S. (203mm max rotor)

Front Brake

Disc - 51mm I.S. (203mm max rotor)

Head Tube

Ø44mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.)

ZS44/28.6

Stock Headset Lower (S.H.I.S.)

EC44/30

Seat Collar

Ø33.1mm

Seatpost

Ø30.9mm

Front Derailleur (Clamp)

High direct mount top-pull (Ø34.9mm)

55mm offset adapter (not included)

Max Chainring (CL)[3]

1x (Fat bike 190): 34T [6]

2x (Surly OD): 22/36T

Bottom Bracket

100mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1]/[2]

26 x 5.1" (rear axle position)

26 x 4.8" (front axle position)

29 x 3.0"

Tire Clearance Fork [1]

26 x 5.25"

29 x 3.0"

Rigid Fork Spec

483 x 47mm

Max Suspension Fork Length [4]

571 x 51mm (Fatbike 140mm)

Bottle Mounts Frame

1 Standard (XS - M)

2 Standard (L - XXL)

Bottle Mounts Fork

2 Three-Pack

Rack Mounts Frame

Yes (upper and lower threaded)

Rack Mounts Fork

Yes (upper, lower, and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

N/A

Other Features

Internal dropper post routing compatible

  • [1] Different tire and rim combinations will result in different clearances.
    [2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
    [3] Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
    [4] Suspension fork length listed at full extension (not at sag)
