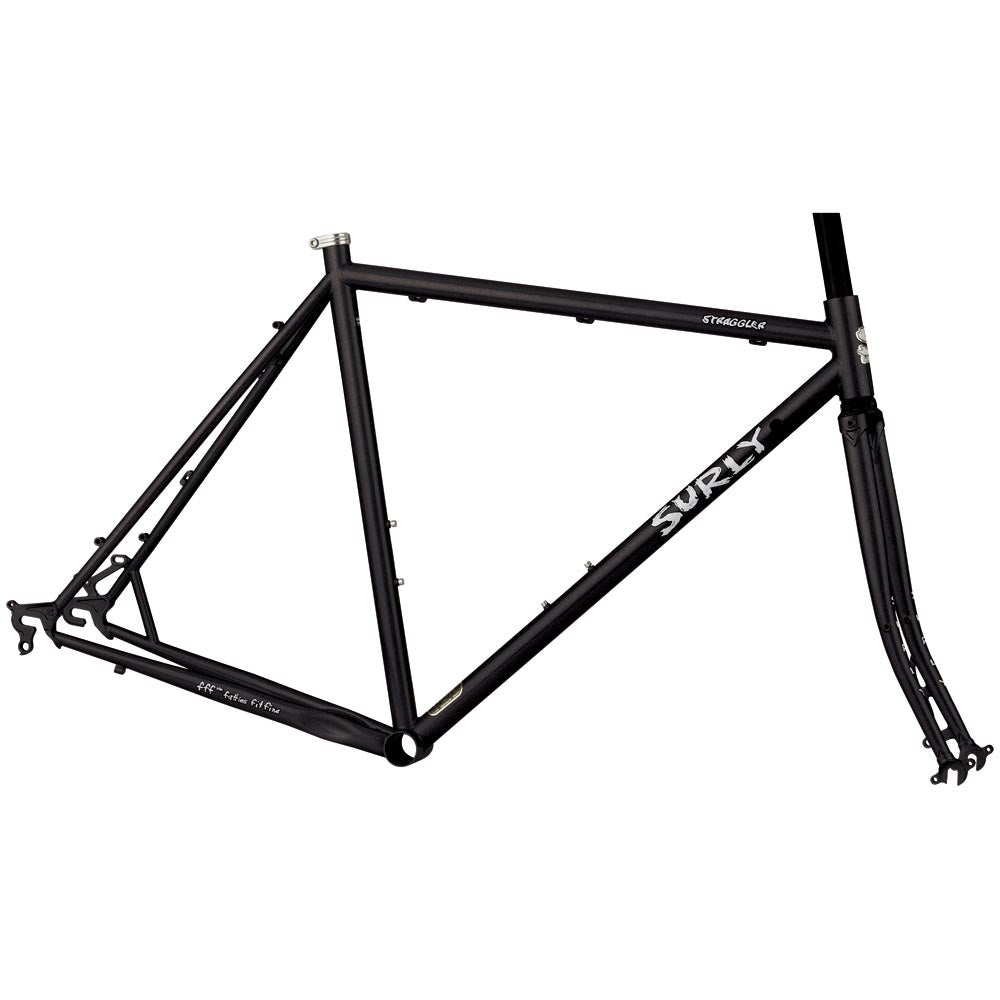

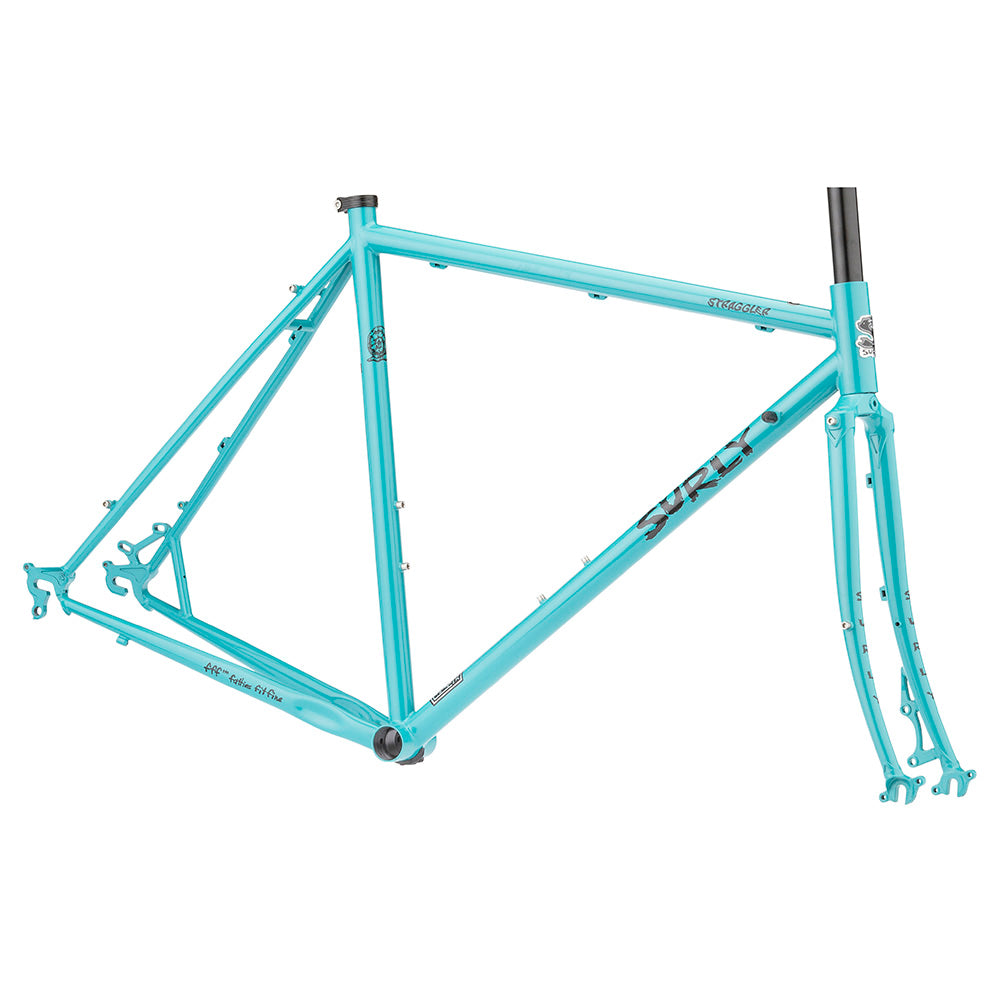

Surly Straggler Frameset

Surly Straggler Frameset

£800.00
£800.00
Sale Enquire to Order
Tax included.
Size
Colour

To pay by Klarna, add to cart.

Collect in Store

Ride away with our Bike Click & Collect service. All bikes are built by a Cytec trained Mechanic and personally set up for you in store.

Straggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender. It’s a ‘rough road’ road bike, a cyclocross bike with no pretense about racing, a utilitarian townie, a light-duty touring bike and an all-weather commuter. It’s a steel gravel bicycle that thrives on the road. Think of it as a “mountain biker’s road bike.” If you only have room for one bike in your life, Straggler can (and should) be your one and only.

Straggler’s capabilities go well beyond asphalt. It also lends itself well to light touring setups. We're talking frame bags, seat bags, and "credit card touring” rather than full-blown touring. Straggler also handles our 8- and 24-Pack Racks well, so you have some heavier-duty loading options.



Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated

Rear Dropout Configuration

Forward-exiting horizontal

Rear Hub Spacing

10 x 135mm

Front Hub Spacing

10 x 100mm

Rear Brake

Disc - 51mm I.S. (160mm max rotor)

Front Brake

Disc - 51mm I.S. (160mm max rotor)

Head Tube

Ø34mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.)

EC34/28.6

Stock Headset Lower (S.H.I.S.)

EC34/30

Seat Collar

Ø30mm

Seatpost

Ø27.2mm

Front Derailleur (Clamp)

Bottom-pull (Ø28.6mm)

Max Chainring (CL)[3]

1x (Road): 50T

2x (Road): 39/53T

Bottom Bracket

68mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1]/[2]

650b: 650b x 42mm (w/ fenders)

700c: 700c x 42mm (with or without fenders)

Tire Clearance Fork [1]

650b: 650b x 42mm (w/ fenders)

650b: 27.5 x 2.0" (w/o fenders)

700c: 700c x 42mm (w/ fenders)

700c: 29 x 2.0" (w/o fenders)

Rigid Fork Spec

650b: 380 x 44mm

700c: 400 x 44mm

Max Suspension Fork Length [4]

N/A

Bottle Mounts Frame

2 Standard

Bottle Mounts Fork

N/A

Rack Mounts Frame

Yes (upper and lower threaded)

Rack Mounts Fork

Yes (upper, lower, and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

Yes

Other Features

Downtube mounted shifter bosses (cable housing stops not included with frameset)

  • [1] Different tire and rim combinations will result in different clearances.
    [2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
    [3] Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
    [4] Suspension fork length listed at full extension (not at sag)
